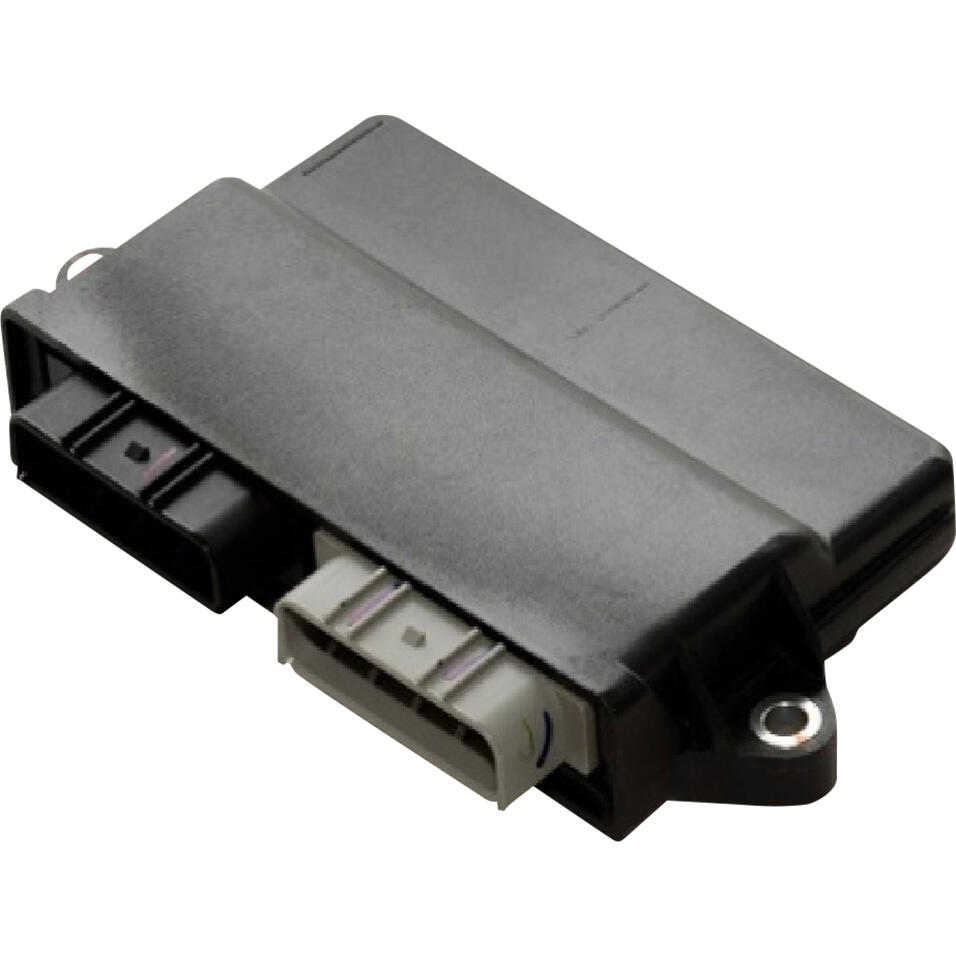

Electronic Control Unit for Outboard
This ECU is used to control the engine. The ECU detects the throttle operation of the vessel operator, the temperature, the air pressure, and other environmental conditions and then issues commands regarding airflow as well as fuel injection amount, spark timing and so on to various devices, so that the engine operates in the optimum state. Conforms to NMEA 2000 (National Marine Electronics Association). Only the finest components are used in us general-purpose ECUs, which gives them superior durability.

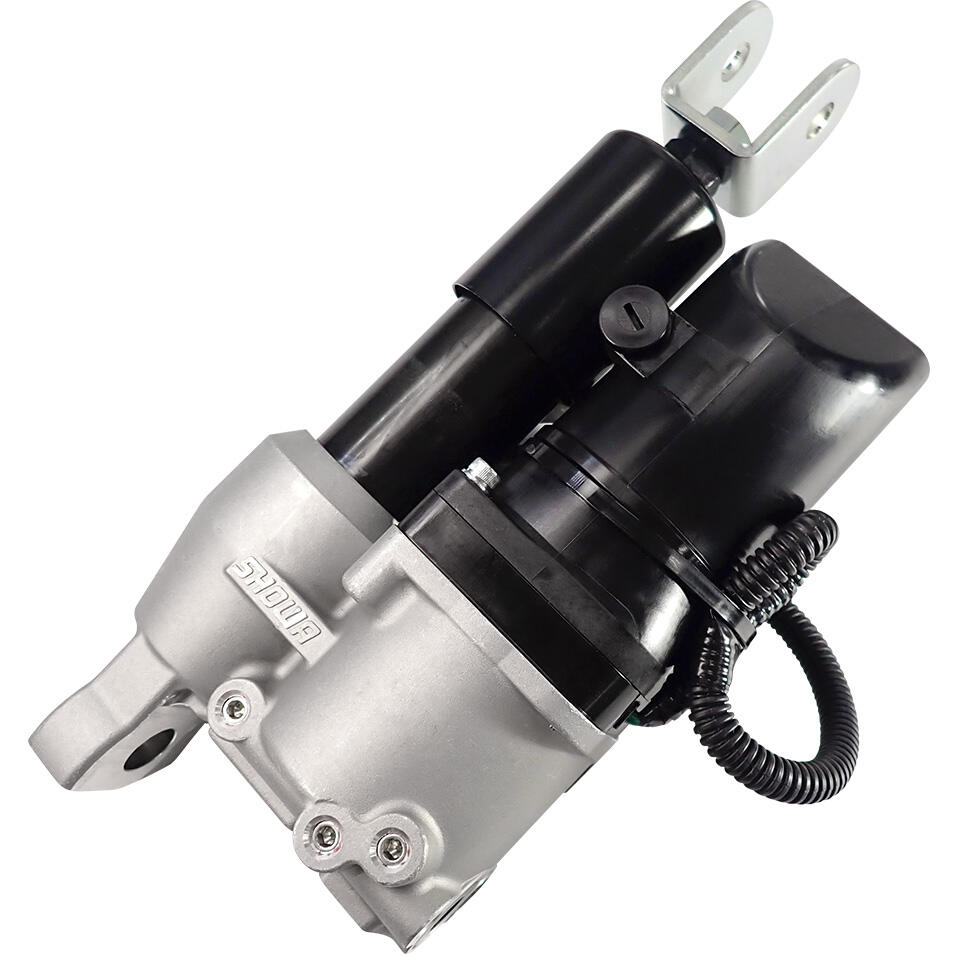

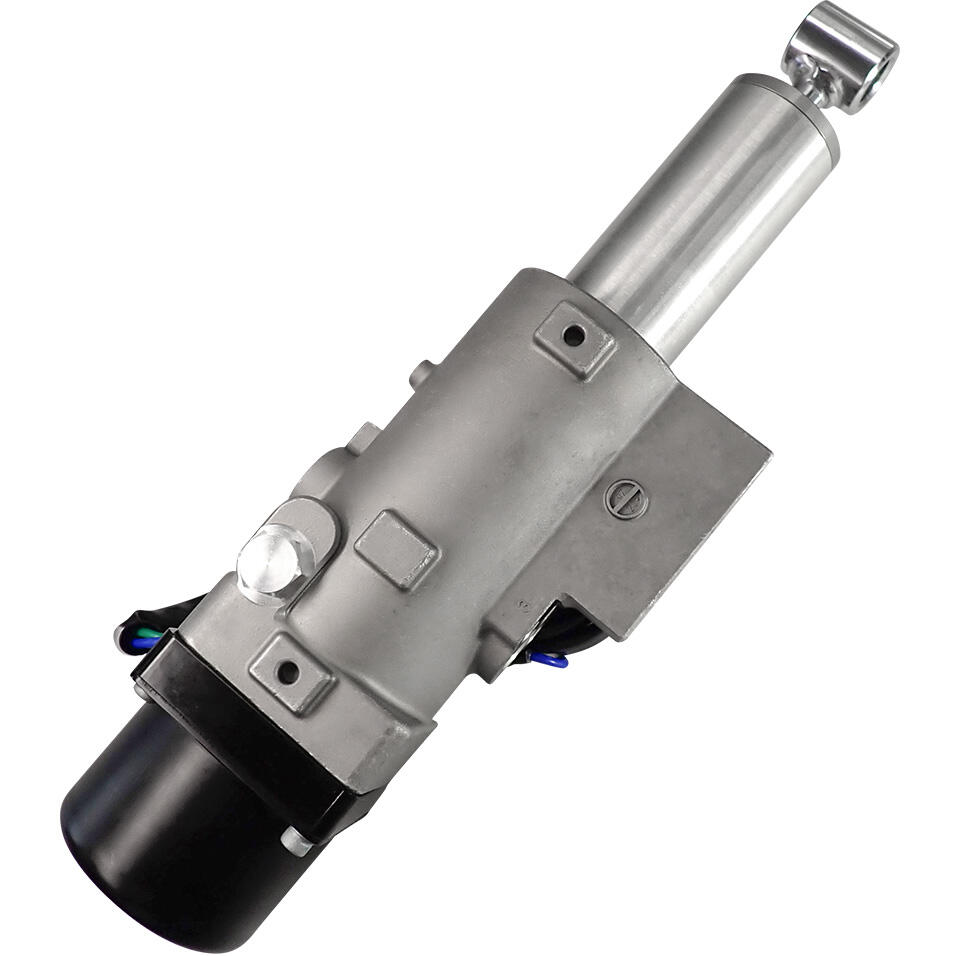

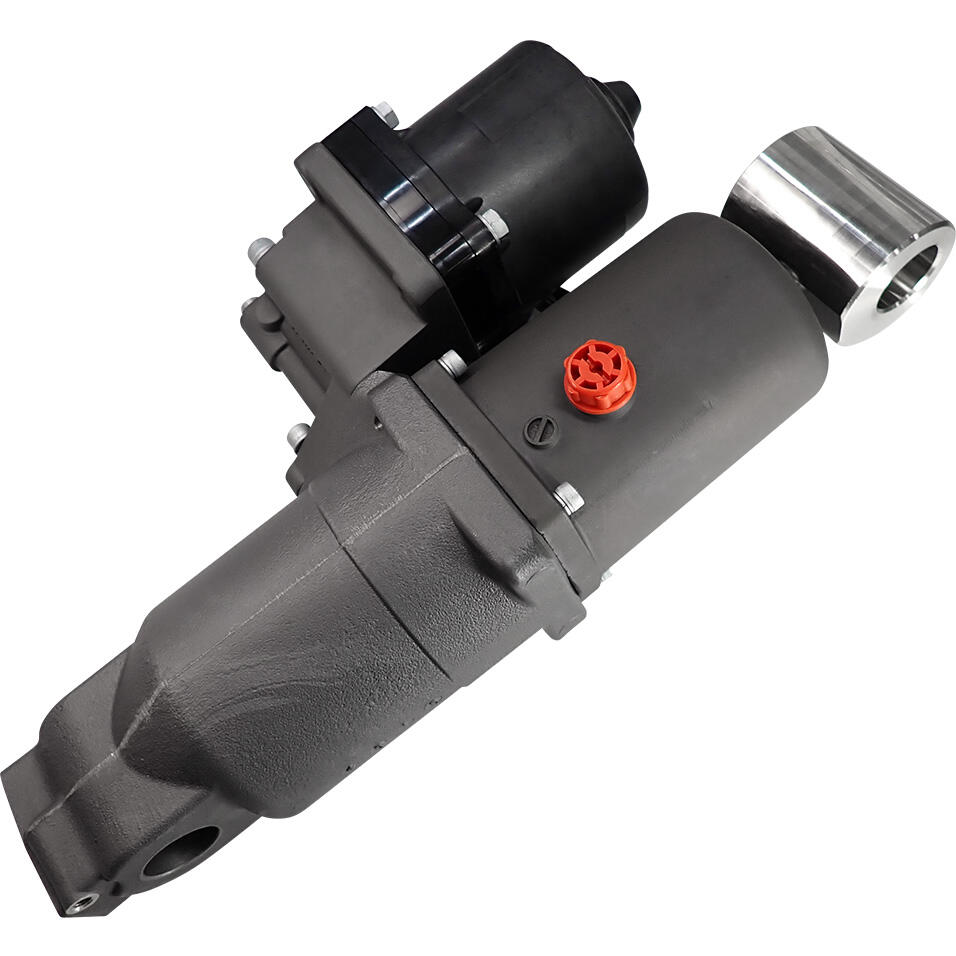

General Purpose Hydraulic Actuator
[Example application]
Spinning/height adjustment mechanism for snow auger
[Characteristics]

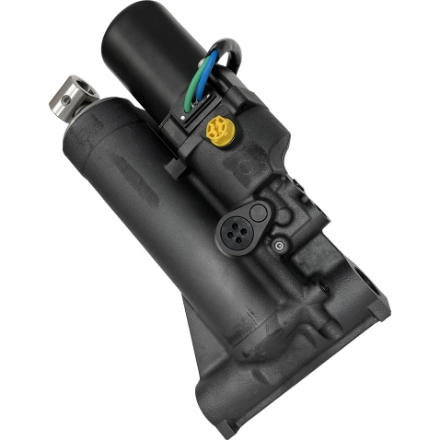

General purpose product based on power tilt for outboards
Micro-Size Power Tilt for Outboards
[Applicable class]
Small-size, 8 to 20 PS outboard engines
[Characteristics]
Specialized for tilt functionality with small-size outboard motors, the product covers 8 to 20 PS and features an inline cylinder/motor layout for a more compact form.

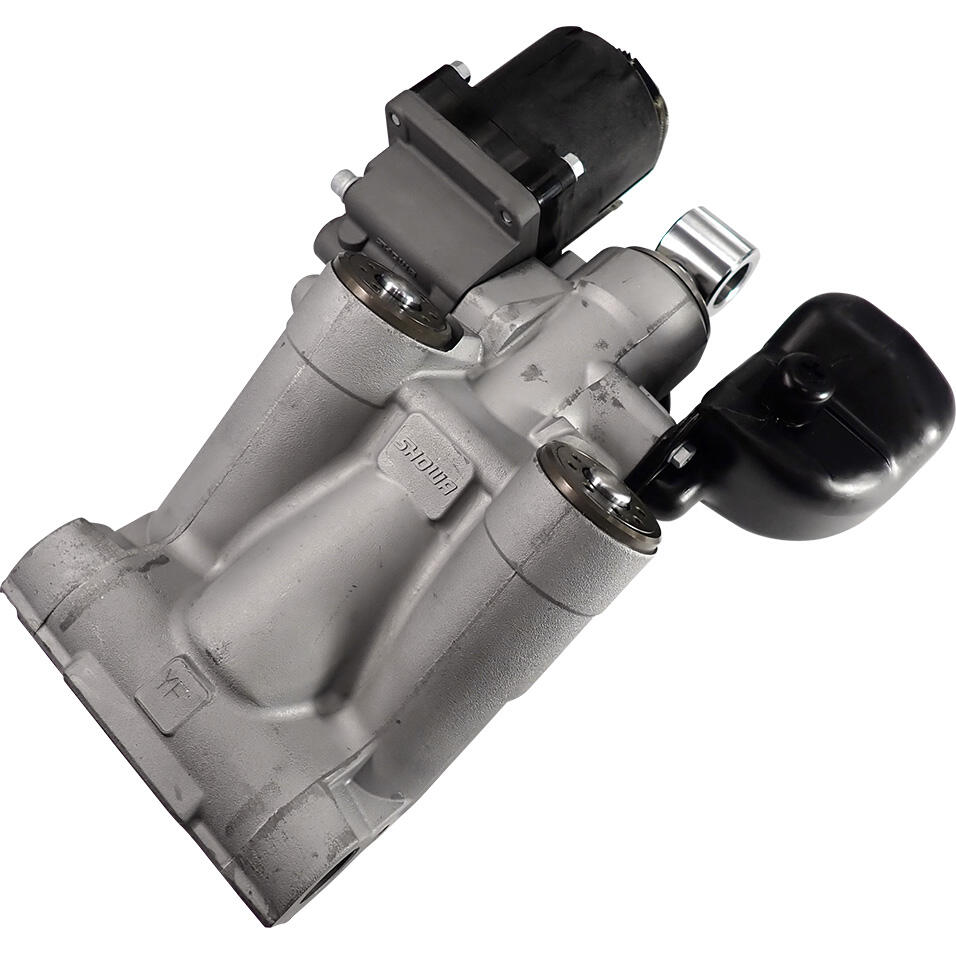

Double Action Power Tilt and Trim (PTT) for Outboard
[Applicable class]
Mid-size, 70 to 130 PS outboard engines
[Characteristics]

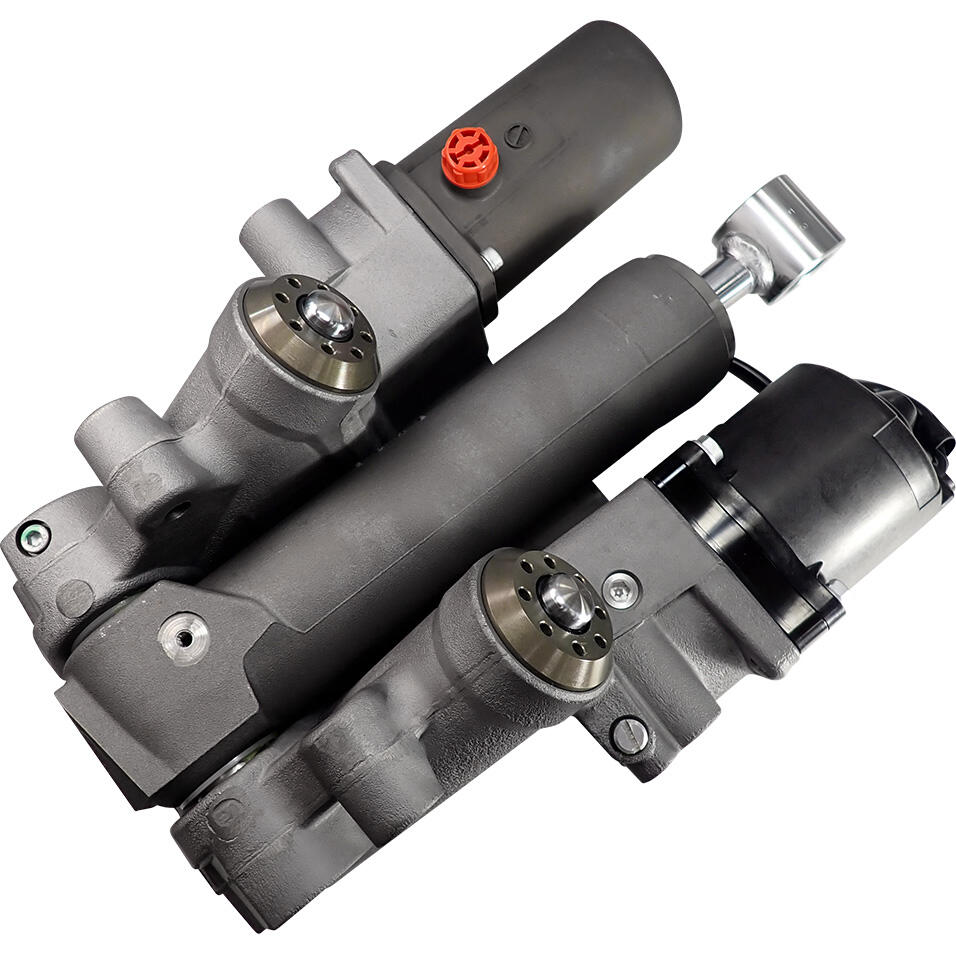

Providing tilt and trim function by a unique, single telescopic cylinder, it weighs 30 percent less than an integrated PTT system. The double action power tilt and trim covers 70 to 130 PS.

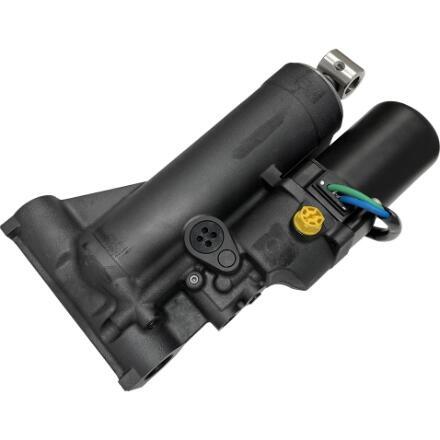

Single Cylinder Power Tilt and Trim for Outboard
[Applicable class]
Mid to large-size 100 to 150 PS outboard engines
[Characteristics]
By adopting a large motor, the product covers 150 PS with its single cylinder construction. Equipped with the latest low-noise technology, providing added value.

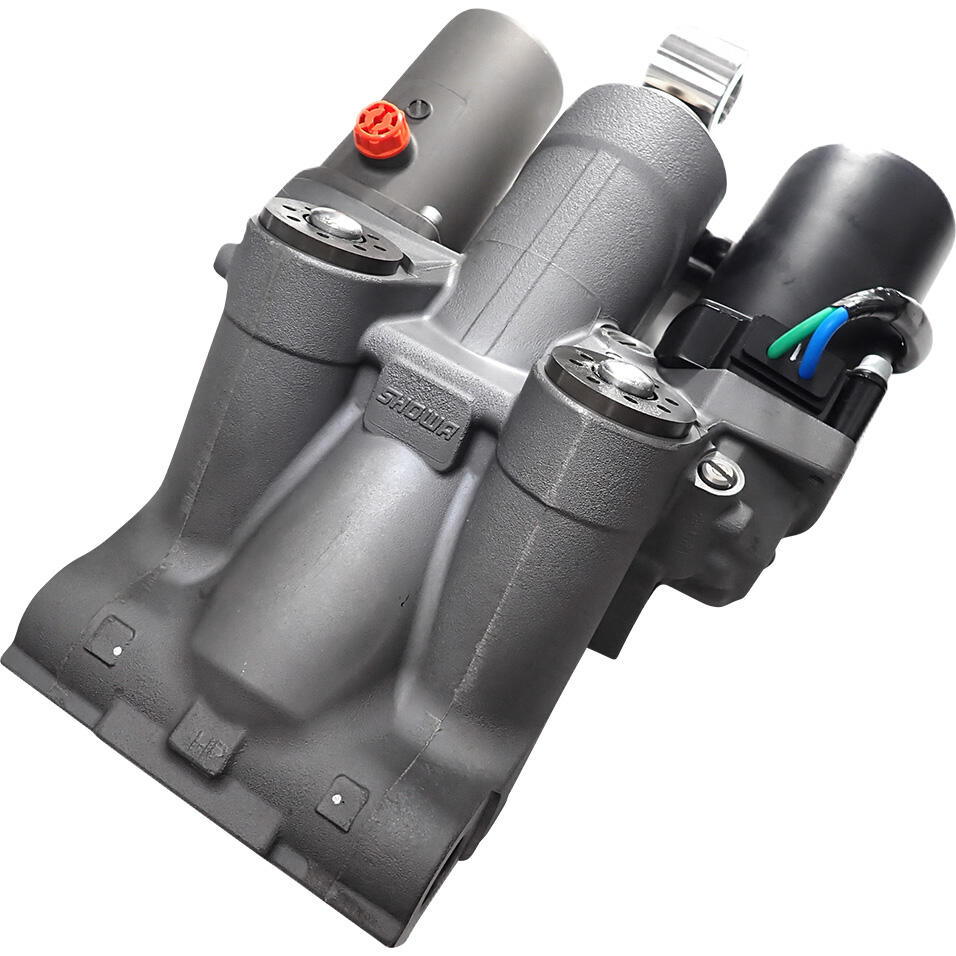

Integrated Power Tilt and Trim for Outboard
[Applicable class]
Mid to Large-size, 75 to 250 PS outboard engines
[Characteristics]
Model features a trim and tilt integrated casting structure. The three cylinders share the load of tilt and trim respectively, which enables the use of large outboard motors despite its small size and light weight.
Large 3-Cylinder Power Tilt and Trim for Outboard（new）
[Applicable class]
Large-size, 200 to 350 PS outboard engines
[Characteristics]
Standard model for large sized outboards. Power tilt and trim is installed into outboard bracket by fasteners, contributing to the outboard motor’s rigidity.
Large Integrated Power Tilt and Trim for Outboard
[Applicable class]
Large-size, 350+ PS outboard engines
[Characteristics]
Equipped with the latest low-noise technology, this new model accommodates higher requirements within the original integrated PTT construction while achieving a light weight and compactness.

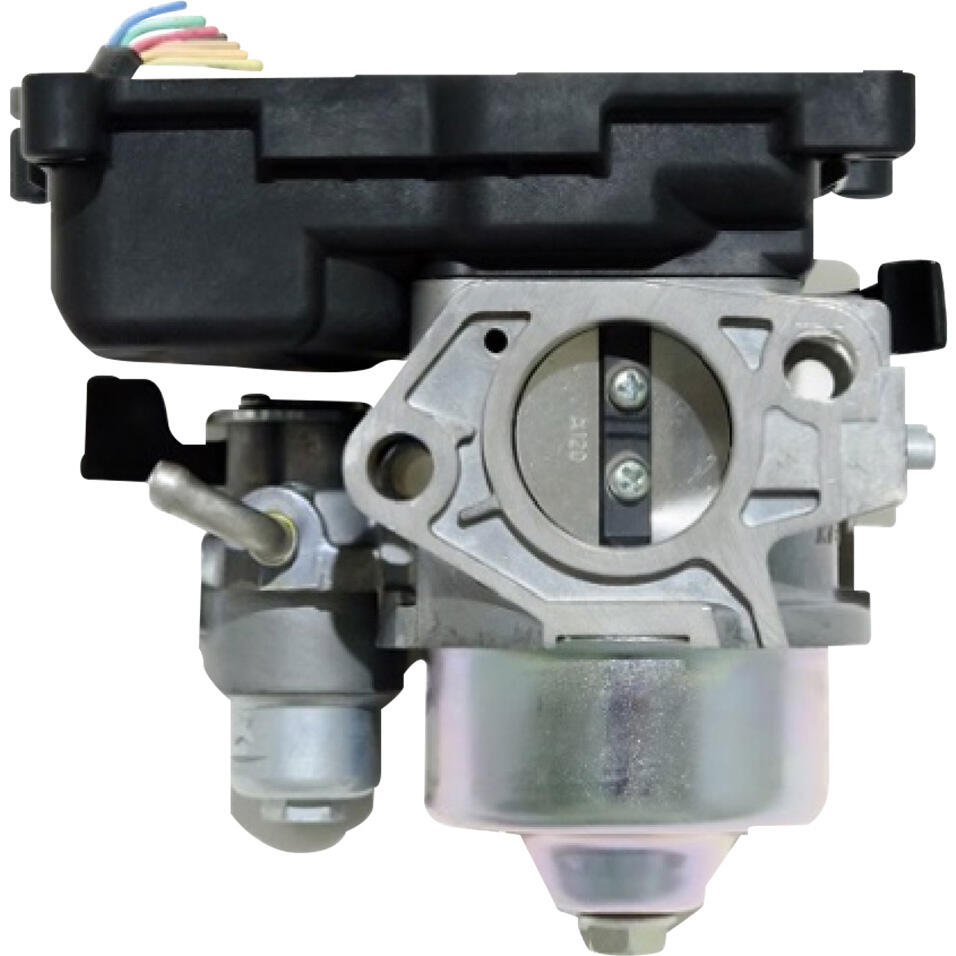

Electronic Motor-driven Carburetor for Power Products
This model of carburetor is driven by an electric motor to supply the exact fuel-air ratio as required by the engine to the cylinders. The product includes an auto-choke mechanism that eliminates the need for choke operation between engine startup and warm-up.

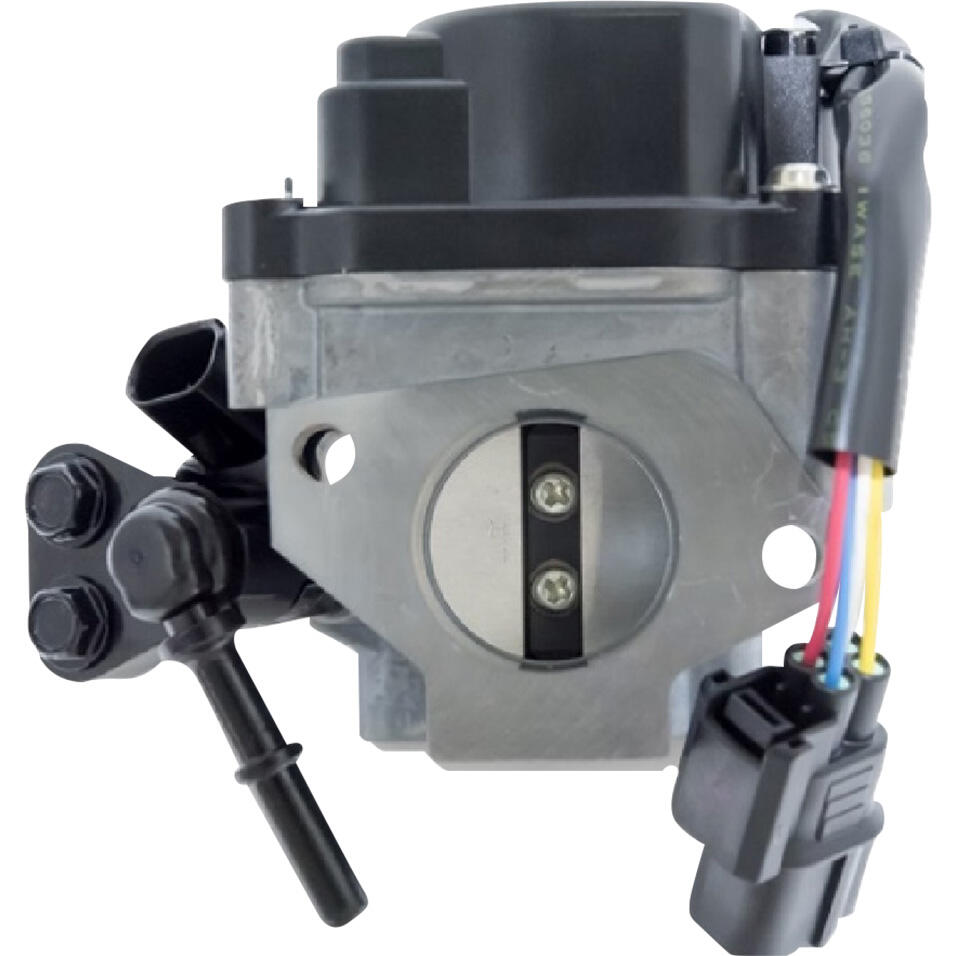

Electronic Control Throttle Body for Power Products
The electronic motor calculates optimum throttle opening based on operating conditions. These instructions are then sent to the motor, which opens or closes the throttle valve in order to supply the right amount of air to the engine. This unit is electronically-controlled for optimum valve operation, which in turn helps improve fuel efficiency and reduce environmental impact (conforming to emissions regulations).

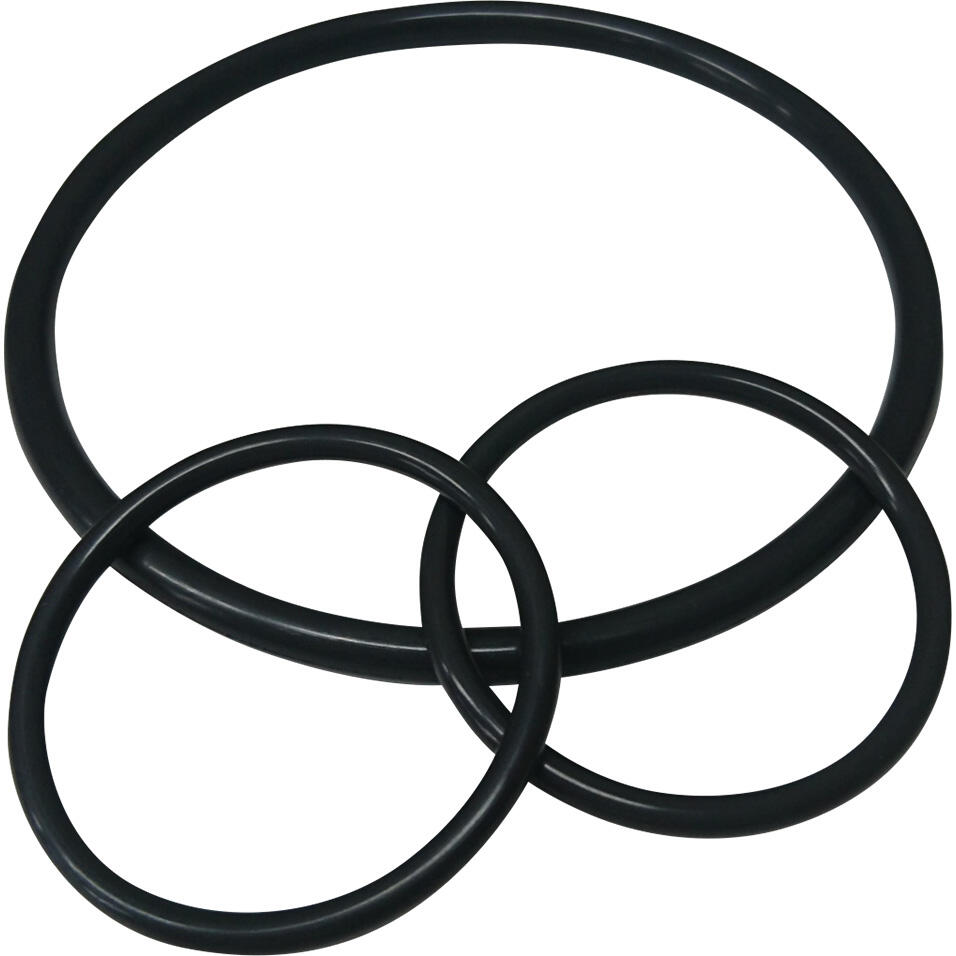

O-rings Containing Carbon Nanotubes
It is a high performance rubber sealing material containing carbon nanotubes, which is resistant to heat, pressure and abrasion. It is used in the field of oil and natural gas development.
Railcar Components / Industrial Equipment

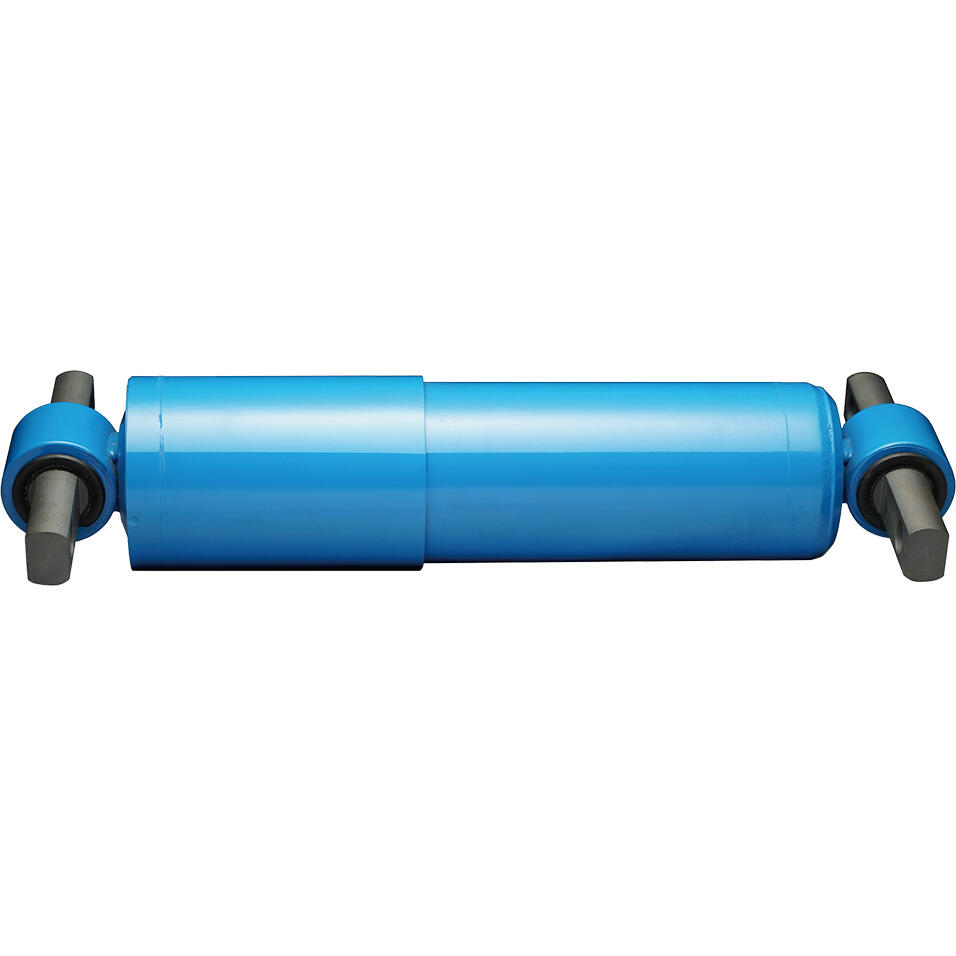

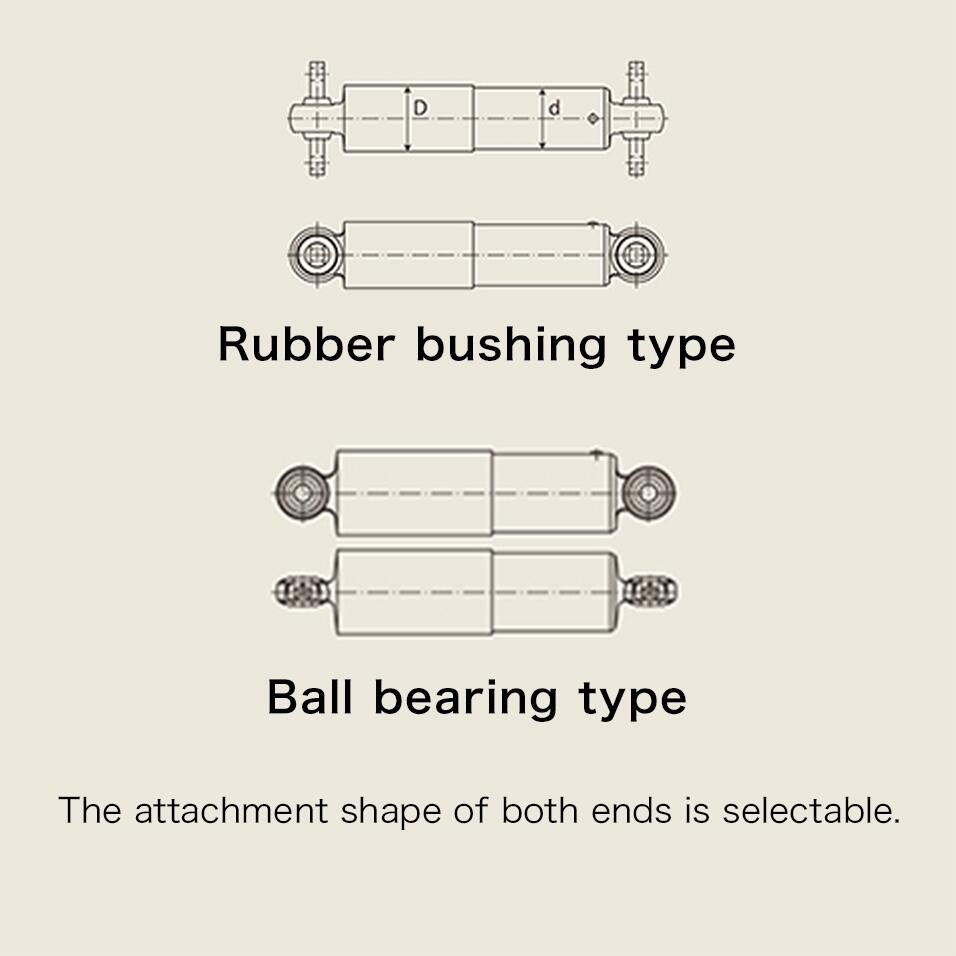

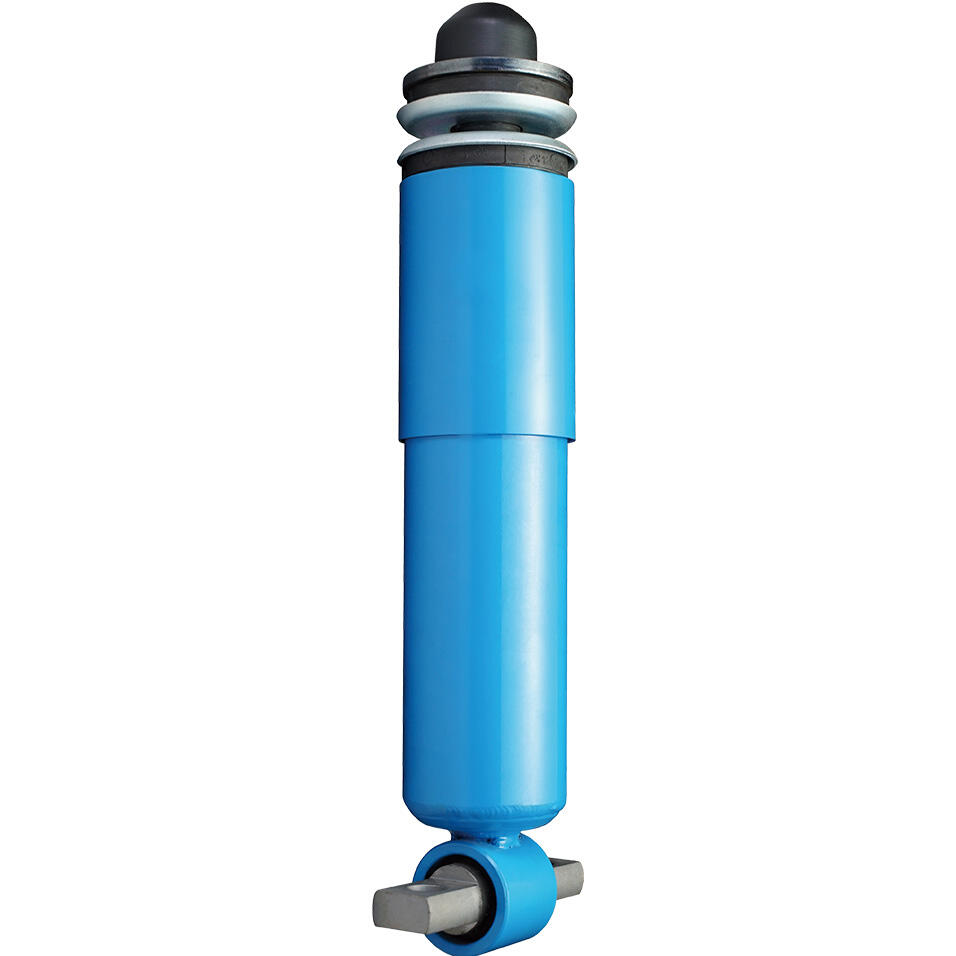

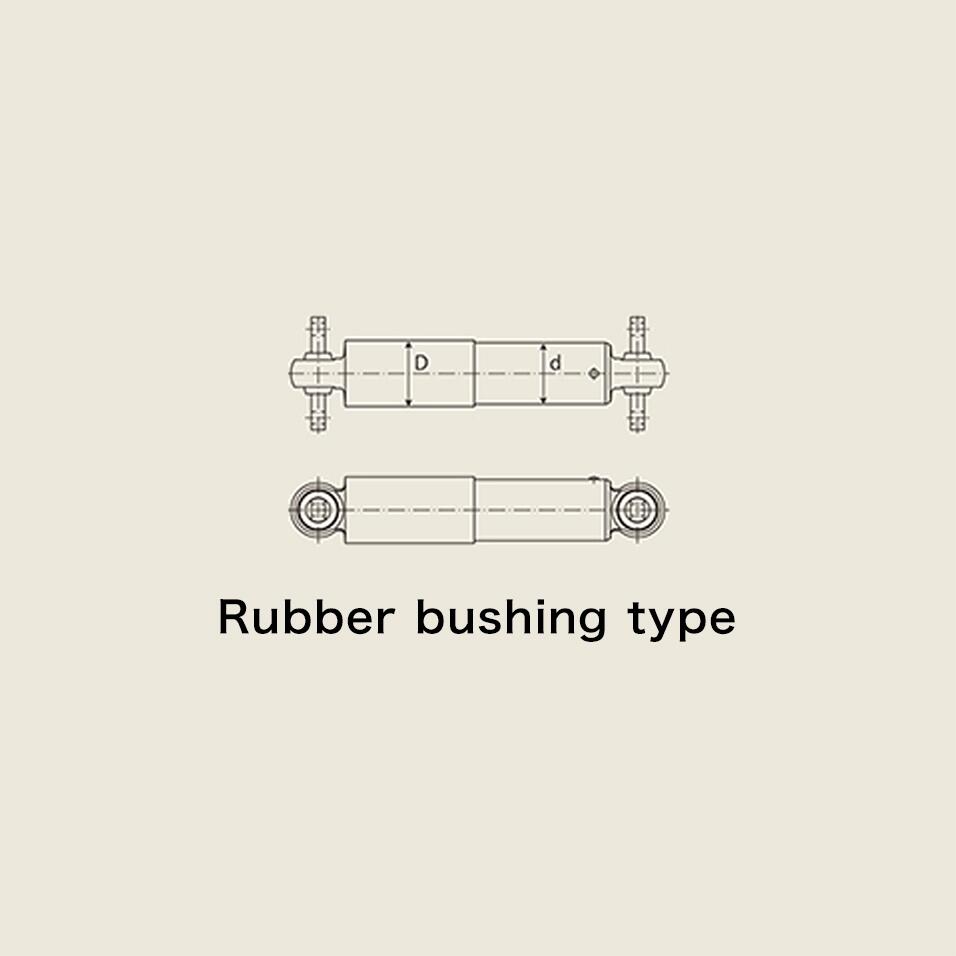

Vertical Damper

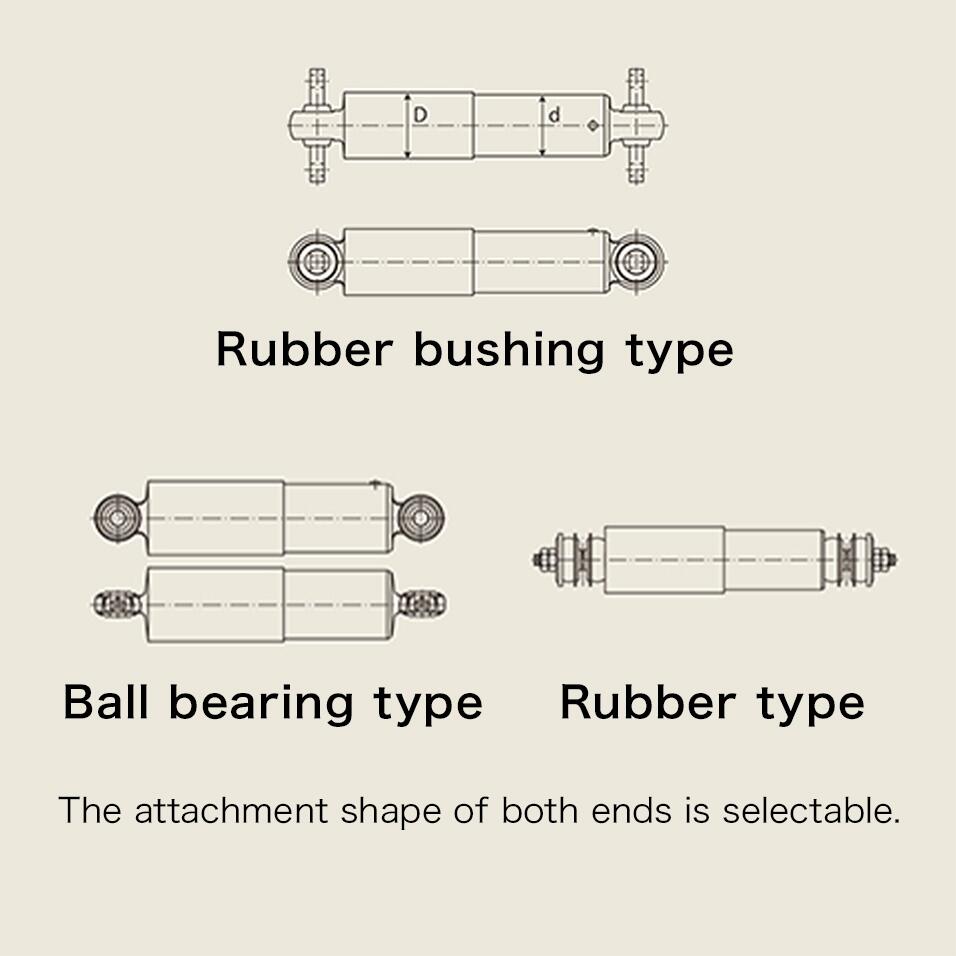

The damper is mounted vertically in primary (axle box suspension) and secondary (car body suspension) systems to absorb vertical vibrations generated from conditions such as track undulations.
Design data
| No | Oil reservoir outer dia. [mm] | Dust cover outer dia. [mm] | Max Damping Force [kN] |
|---|---|---|---|
| 1 | 90 | 98 | 10 |
| 2 | 102 | 110 | 20 |
- ・ When detailed data are necessary, please perform an inquiry individually.
- ・ When you want size except the above, please do an inquiry individually.

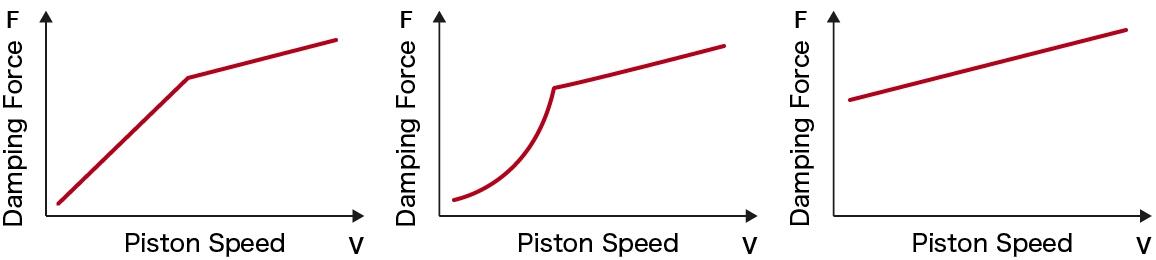

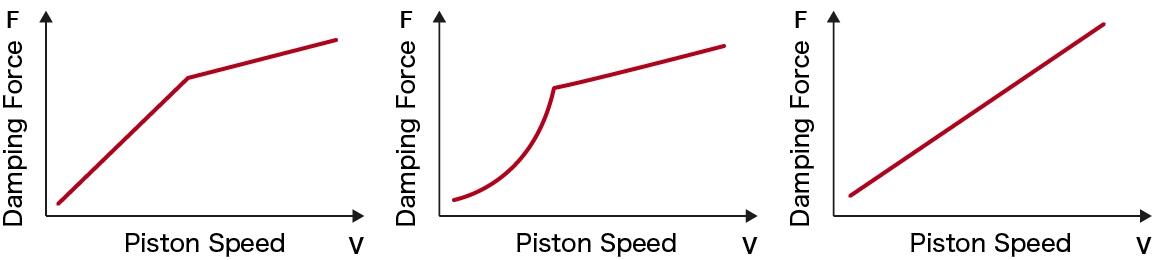

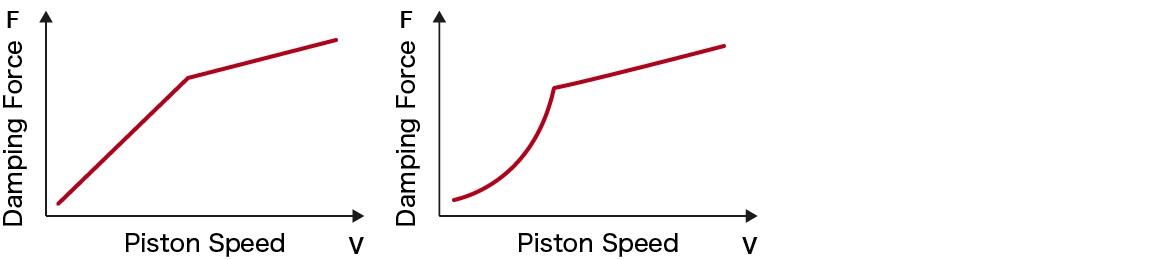

Chart of damping force characteristics
- ・ When you want characteristic except the above, please perform an inquiry individually.

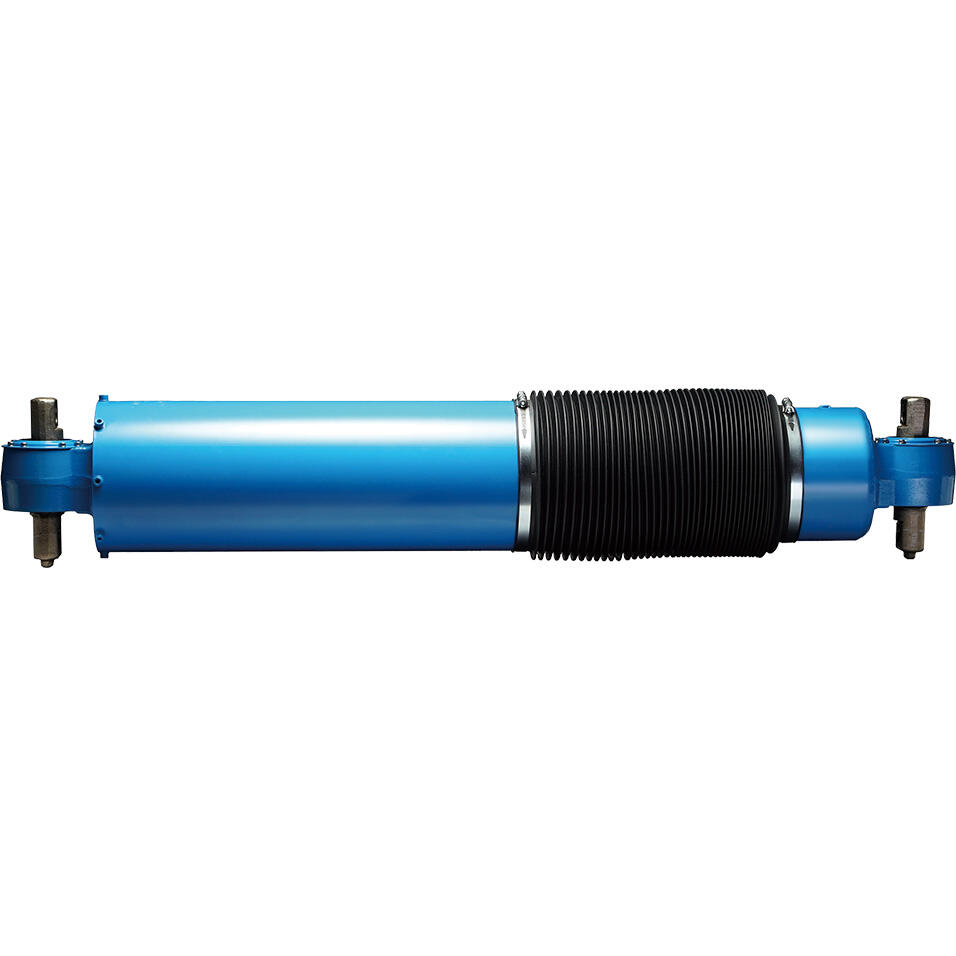

Horizontal Damper
The horizontal damper is mounted laterally in secondary systems, between bogie and car body, to absorb the respective vibrations.
Design data
| No | Oil reservoir outer dia. [mm] | Dust cover outer dia. [mm] | Max Damping Force [kN] |
|---|---|---|---|
| 1 | 90 | 98 | 12 |
| 2 | 112 | 120 | 10 |
- ・ When detailed data are necessary, please perform an inquiry individually.
- ・ When you want size except the above, please do an inquiry individually.
Chart of damping force characteristics
- ・ When you want characteristic except the above, please perform an inquiry individually.
Yaw Damper
The yaw damper is mounted lateral to the track between the bogie and car body of railway vehicles such as high-speed trains to dampen the bogie’s rotational movement (hunting motion).
Design data
| No | Oil reservoir outer dia. [mm] | Dust cover outer dia. [mm] | Max Damping Force [kN] |
|---|---|---|---|
| 1 | 90 | 106 | 12 |
| 2 | 112 | 127 | 18 |
| 3 | 127 | 144 | 20 |
- ・ When detailed data are necessary, please perform an inquiry individually.
- ・ When you want size except the above, please do an inquiry individually.
Chart of damping force characteristics
- ・ When you want characteristic except the above, please perform an inquiry individually.
Yaw Damper
The yaw damper is mounted between the bogie and car body of railway vehicles such as high-speed trains in the lateral direction of track to dampen the rotational movement (hunting motion) of the bogie.
Design data
| No | Oil reservoir outer dia. [mm] | Dust cover outer dia. [mm] | Max Damping Force [kN] |
|---|---|---|---|
| 1 | 148 | 164 | 22 |
| 2 | 156 | 174 | 22 |
- ・ When detailed data are necessary, please perform an inquiry individually.
- ・ When you want size except the above, please do an inquiry individually.
Chart of damping force characteristics
- ・ When you want characteristic except the above, please perform an inquiry individually.

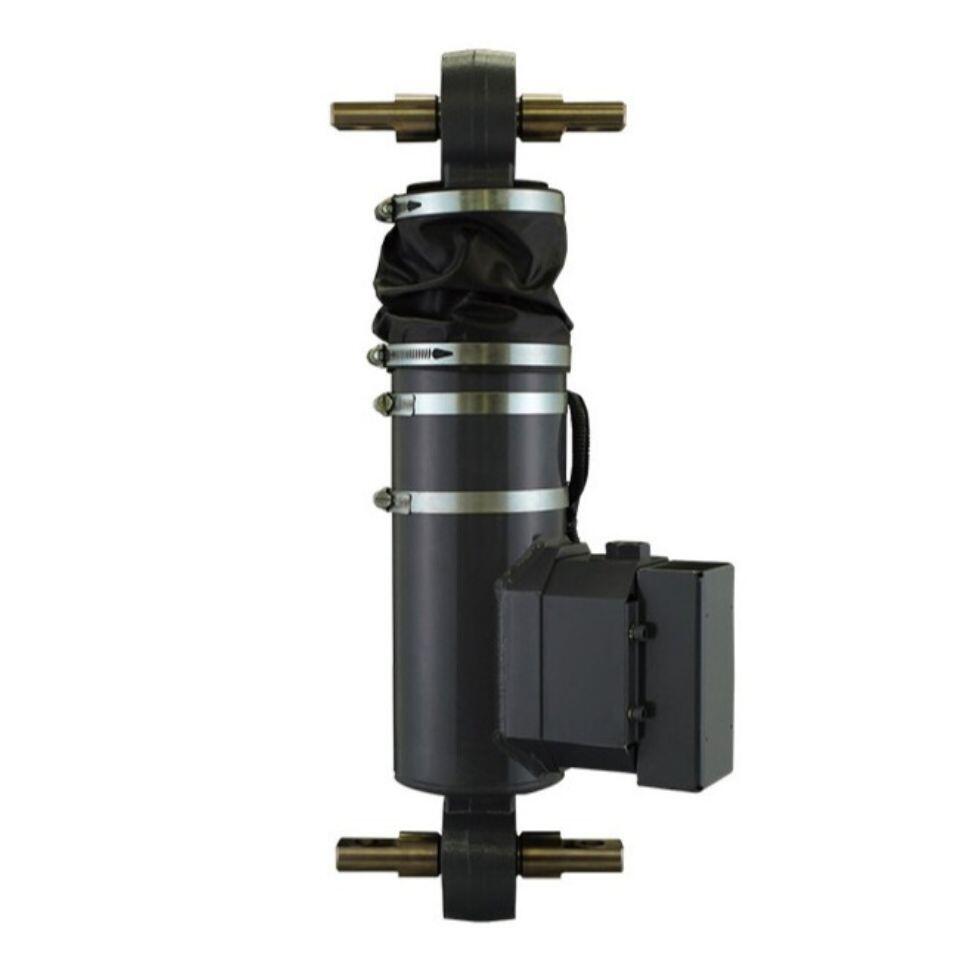

Variable Damper System
The variable damper system provides enhanced riding comfort to the passengers through newly developed dampers and controllers, which continuously adjust damping force and suppress vertical vibrations.
- ・ When detailed data are necessary, please perform an inquiry individually.

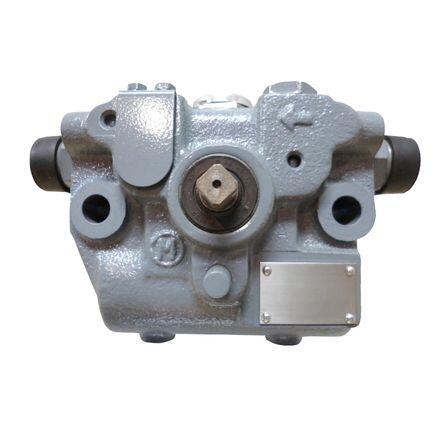

Leveling Valve
Even if the height of the air springs changes momentarily due to an increase or decrease of the car body mass, the leveling valve automatically allows air to enter or leave the air springs to maintain constant car height.
- ・ When detailed data are necessary, please perform an inquiry individually.

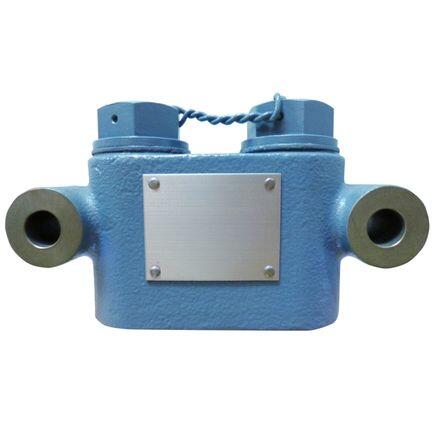

Differential Pressure Valve
The differential pressure valve is set between the left and right air springs.
In the event of a height difference occurring between these air springs, it works to relieve the pressure difference to prevent a severe twist to the car body.
- ・ When detailed data are necessary, please perform an inquiry individually.
Vibration-Proof Damper for Housing
We have developed a vibration control damper that is effective against repeat earthquakes and have a high vibration control effect, reducing the risk of damage to homes and contributing to a safe and secure life.

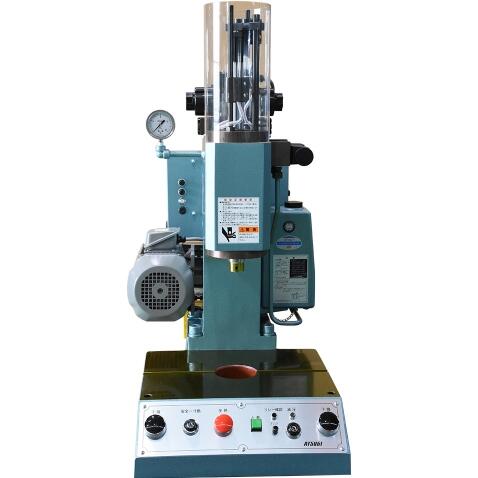

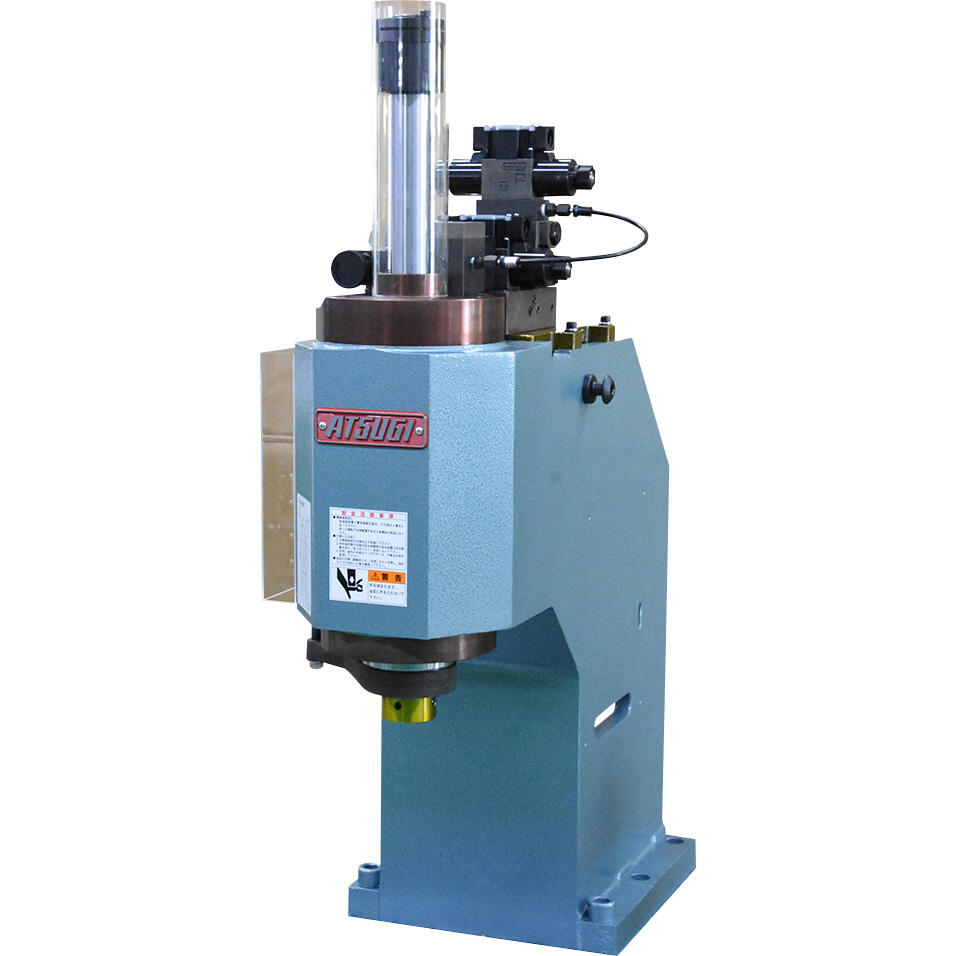

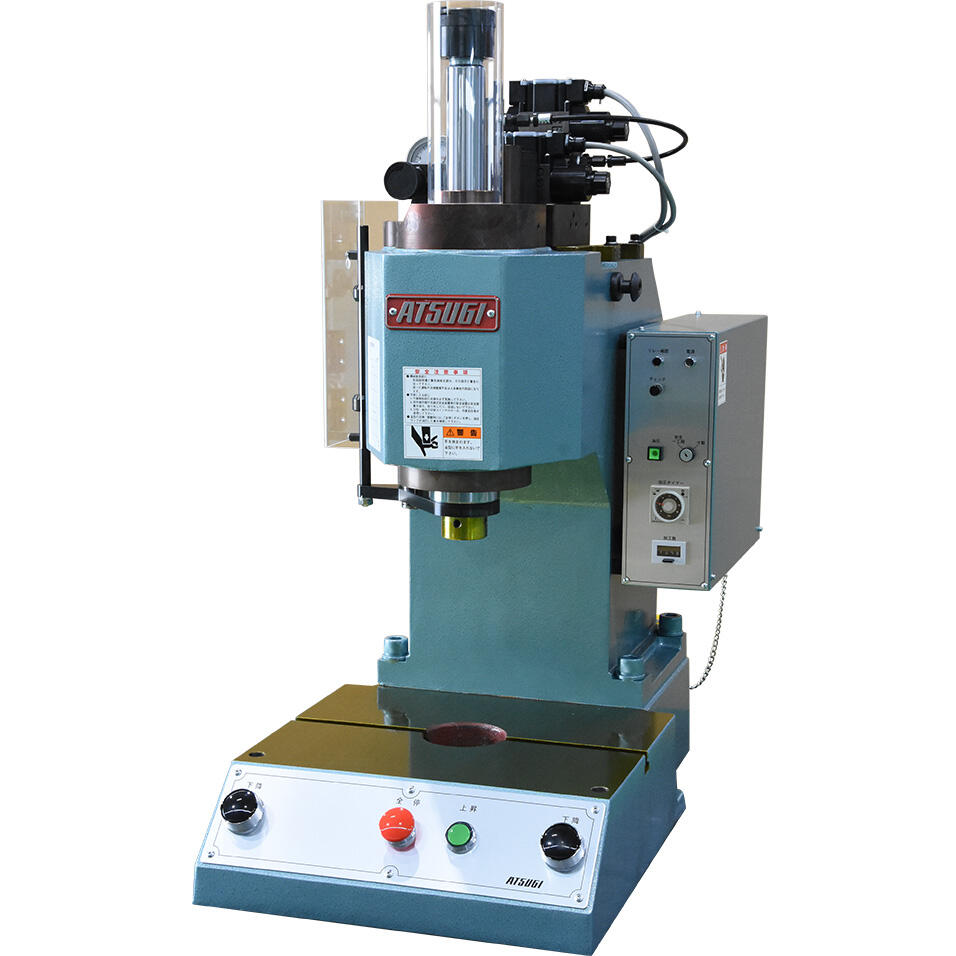

Atsugi Hydraulic Press

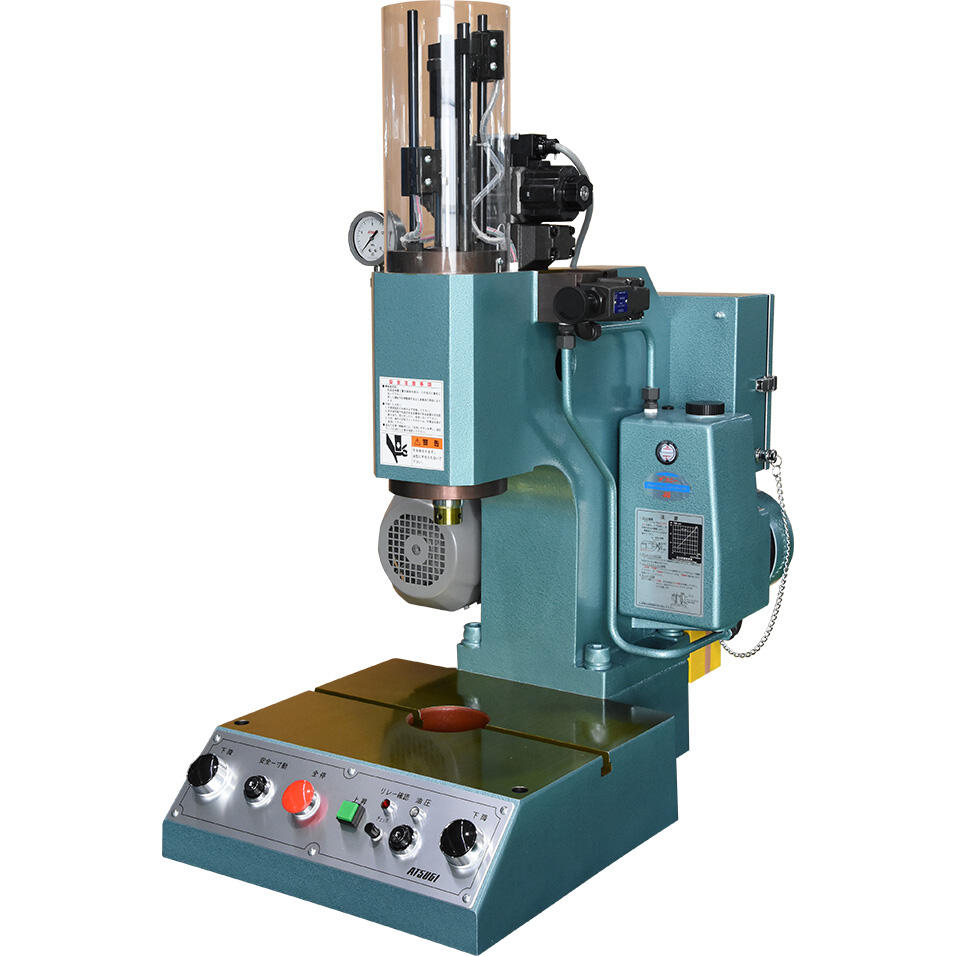

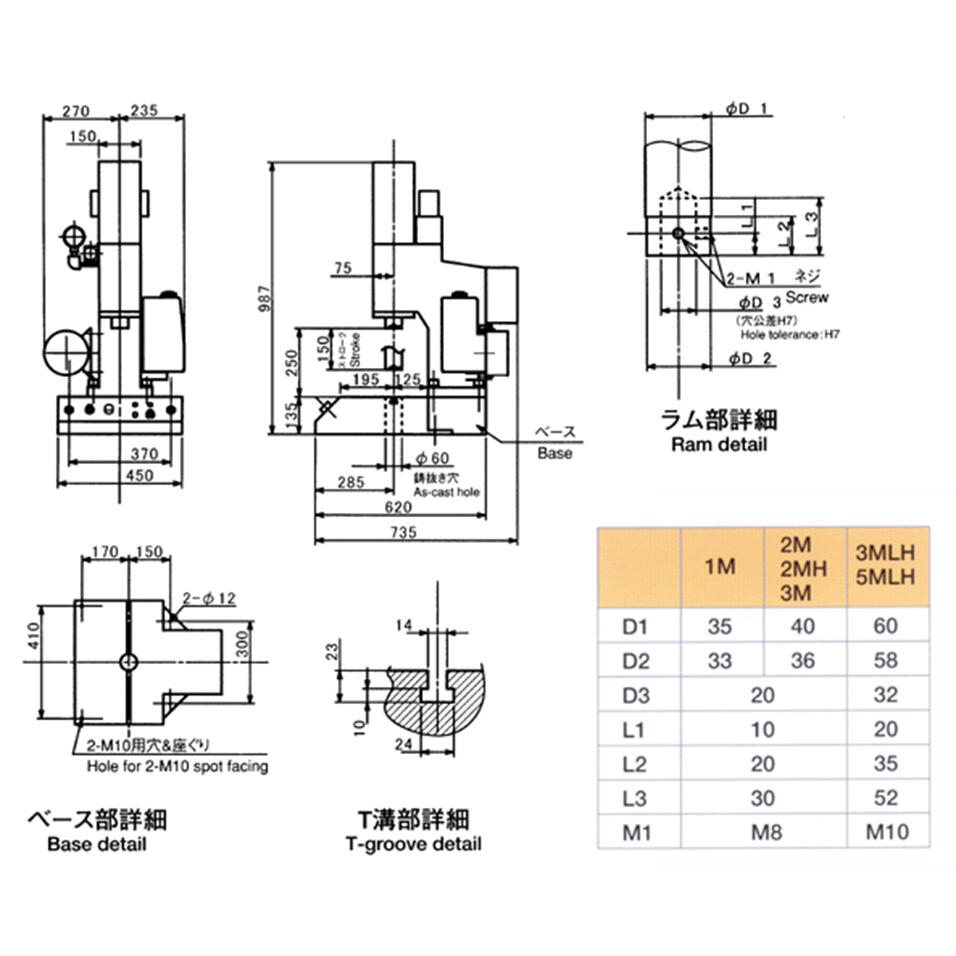

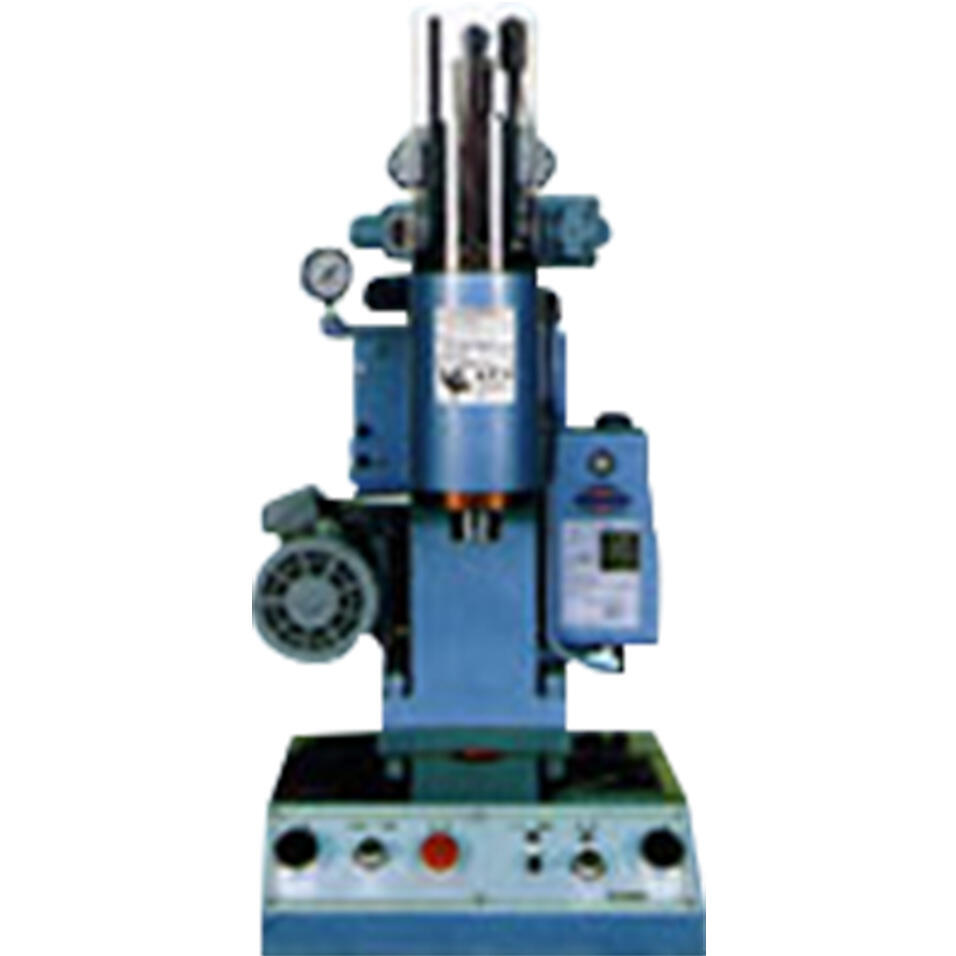

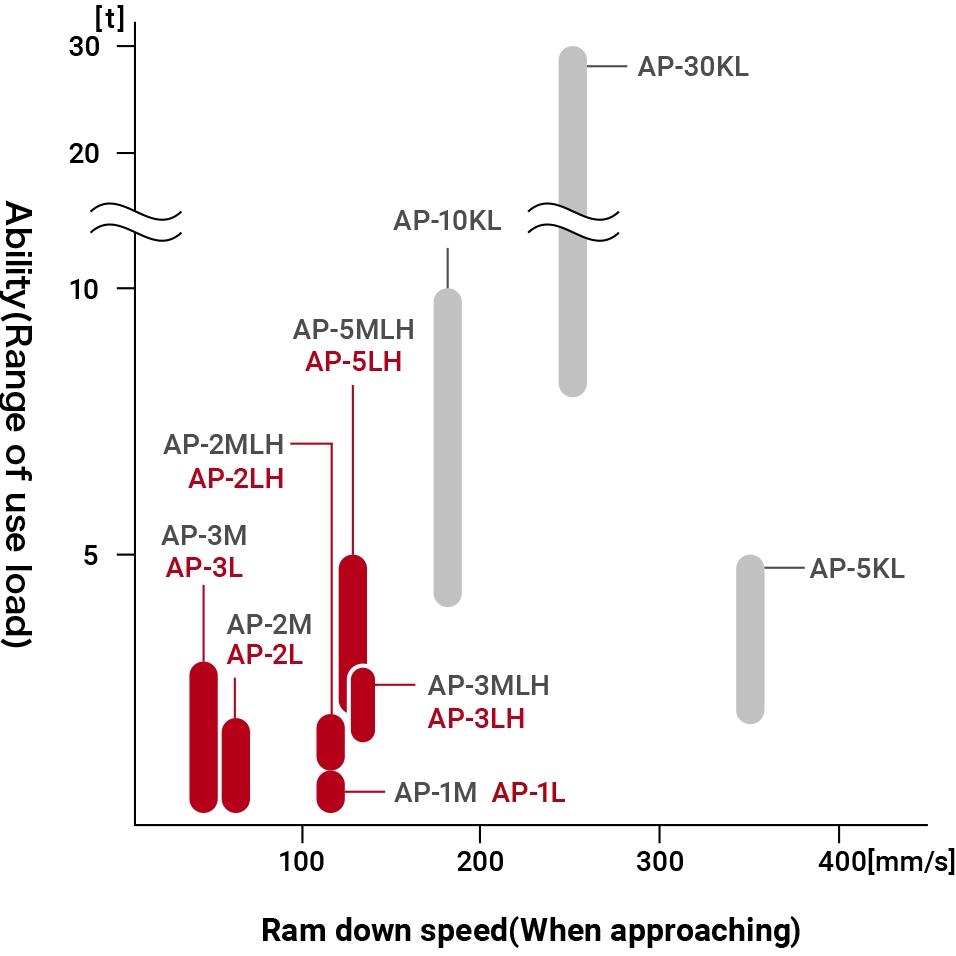

M type series
Hydraulic and control circuits and operating system are integrated using compact and durable automotive hydraulic vane pumps.
This hydraulic tabletop press is ready for immediate operation after installation by simply connecting the power supply. The lineup includes pressurizing capacities from 10 to 50 kN, with options to suit your application, and high productivity in “press fitting” and “caulking” operations, mainly in metal processing.

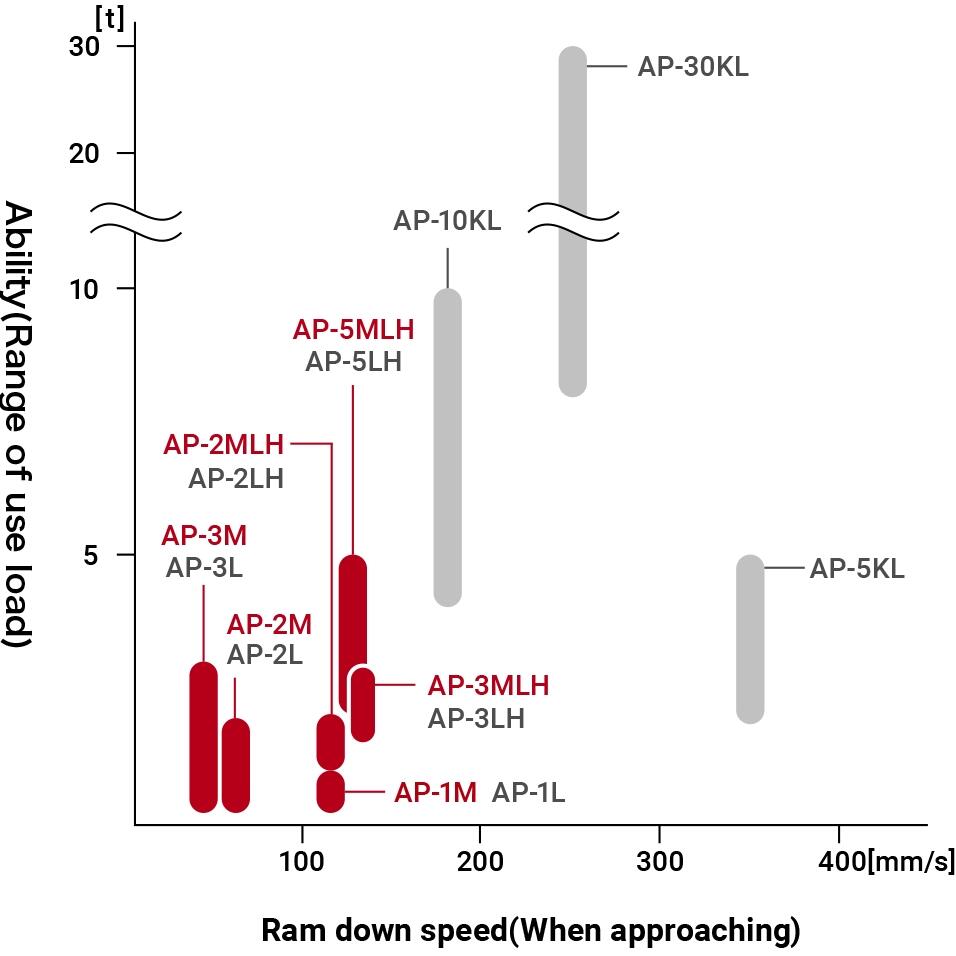

Specification table
This table can be scrolled horizontally.
| Model | M type series (M, MH, MLH) | ||||||
|---|---|---|---|---|---|---|---|
| AP-1M | AP-2M | AP-3M | AP-2MH | AP-3MLH | AP-5MLH | ||
| Used load range (kN) | 2.5～10 | 5～20 | 6～30 | 10～20 | 15～30 | 20～50 | |
| *1 (reference), based on ton |
0.25～1 | 0.5～2 | 0.6～3 | 1.0～2 | 1.5～3 | 2.0～5 | |
| Ram stroke (mm) | 150 | ||||||
| Ram stroke extension | Option +50 & +100mm | ||||||
| Ram down speed (mm/s) |
When approaching (high speed) |
115 | 60 | 46.7 | 115 | 128.3 | 128.3 |
| When pressurizing (low speed) |
60 | 53 | 38 | ||||
| Ram up speed (mm/s) | 145 | 78.3 | 56.7 | 78.3 | 91.7 | 56.7 | |
| Operation area | Open-height (mm) |
250 | |||||
| Depth (mm) |
125 | ||||||
| Body size | Height (mm) | 987 | |||||
| Width (mm) | 505 | ||||||
| Depth (mm) | 735 | ||||||
| Motor specification | 3-phase AC200V 4P 1.5KW | ||||||
| Operation oil / quantity | Daphni Hydraulic 46/6L | ||||||
| Overall Weight (kg) | 200 | 250 | |||||
- *1 (Reference) Guideline for old unit is not a conversion value.
- ・ It is possible that the specifications may be changed in order to make improvement(s) without notice.

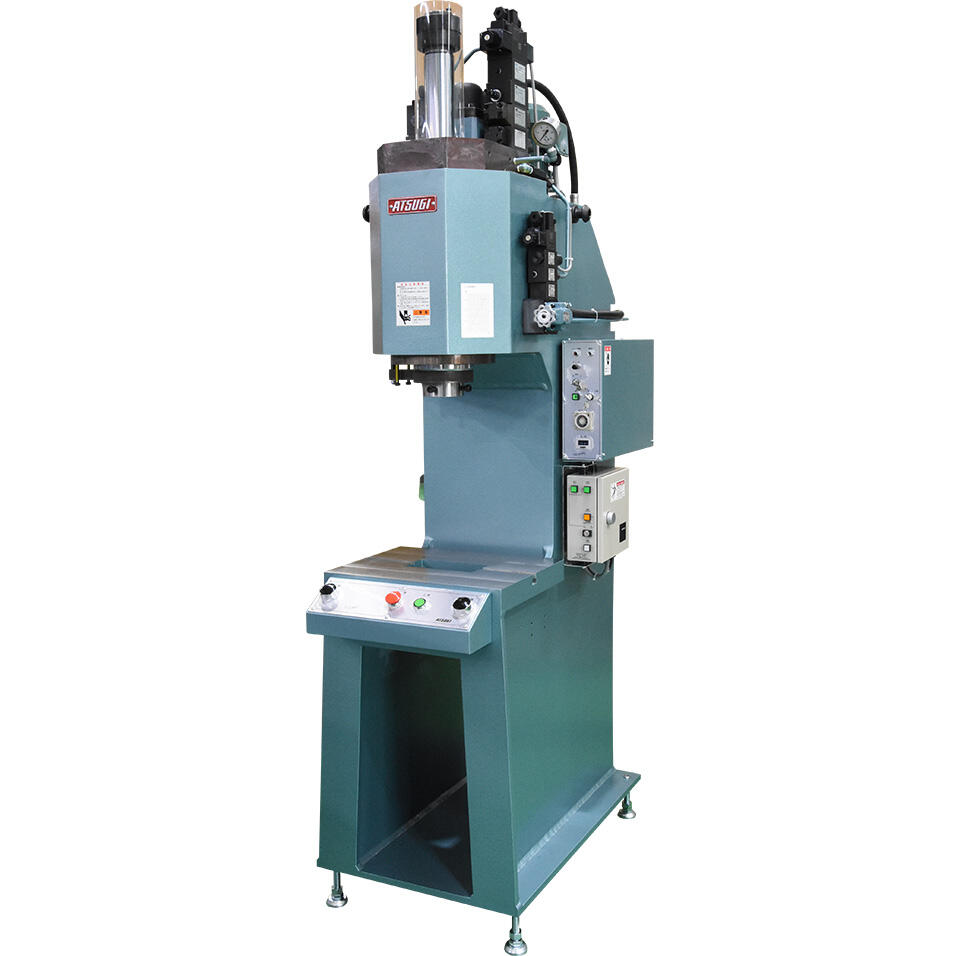

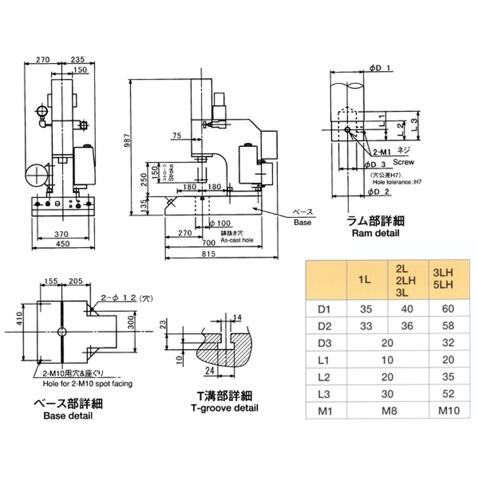

L type series
This hydraulic tabletop press is ready for immediate operation after installation by simply connecting the power supply. The lineup includes pressurizing capacities from 10 to 50 kN, with options to suit your application, and high productivity in “press fitting” and “caulking” operations, mainly in metal processing.
The difference with the M-series is that it has a larger base surface and pocket. This allows it to handle larger jigs and products.
Specification table
This table can be scrolled horizontally.
| Model | L type series (L, LH) | ||||||
|---|---|---|---|---|---|---|---|
| AP-1L | AP-2L | AP-3L | AP-2LH | AP-3LH | AP-5LH | ||
| Used load range (kN) | 2.5～10 | 5～20 | 6～30 | 10～20 | 15～30 | 20～50 | |
| *1 (reference),based on ton | 0.25～1 | 0.5～2 | 0.6～3 | 1.0～2 | 1.5～3 | 2.0～5 | |
| Ram stroke (mm) | 150 | ||||||
| Ram stroke extension | Option +50 & +100mm | ||||||
| Ram down speed (mm/s) |
When approaching (high speed) |
115 | 60 | 46.7 | 115 | 128.3 | 128.3 |
| When pressurizing (low speed) |
60 | 53 | 38 | ||||
| Ram up speed (mm/s) |
145 | 78.3 | 56.7 | 78.3 | 91.7 | 56.7 | |
| Operation area |
Open-height (mm) |
250 | |||||
| Depth (mm) |
180 | ||||||
| Body size | Height (mm) | 987 | |||||
| Width (mm) | 505 | ||||||
| Depth(mm) | 815 | ||||||
| Motor specification | 3-phase AC200V 4P 1.5KW | ||||||
| Operation oil / quantity | Daphni Hydraulic 46/6L | ||||||
| Overall Weight (kg) | 300 | ||||||
- *1 (Reference) Guideline for old unit is not a conversion value.
- ・ It is possible that the specifications may be changed in order to make improvement(s) without notice.

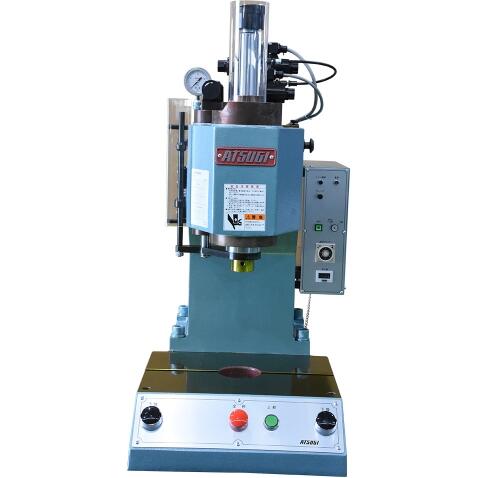

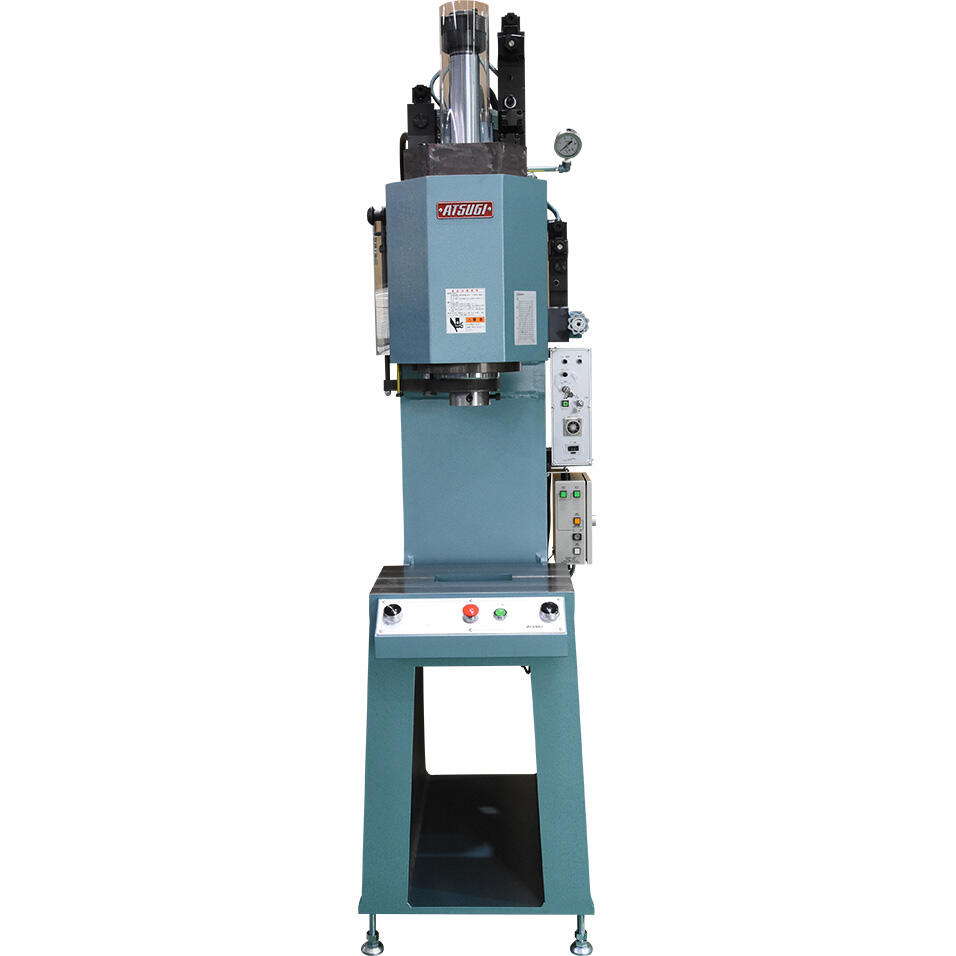

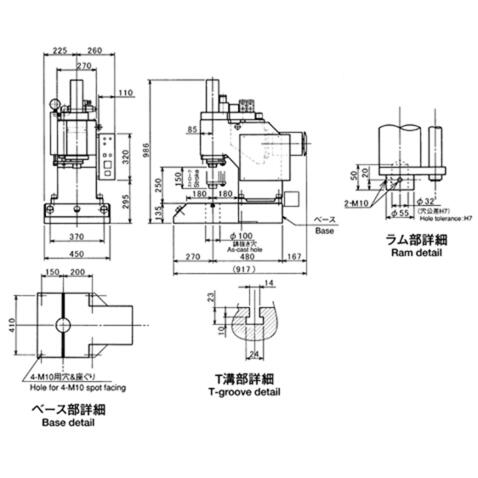

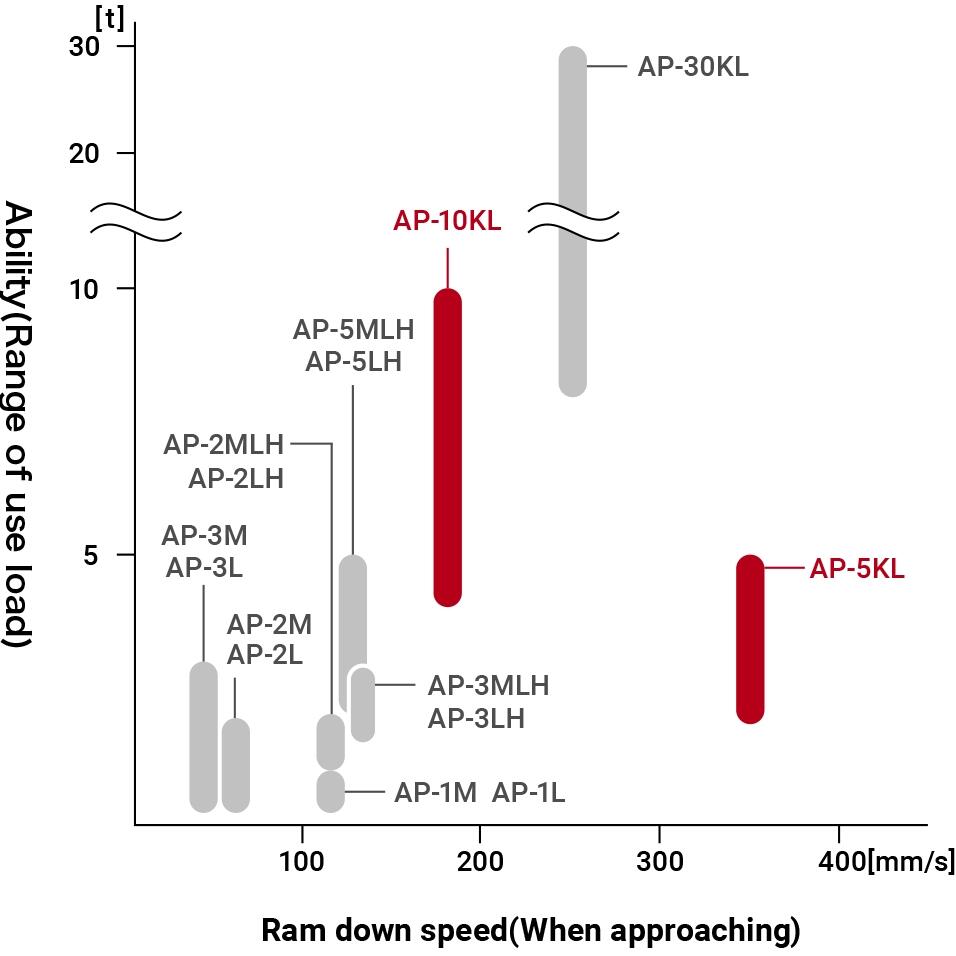

5KL type/10KL type
Equipped with a sub-cylinder for high-speed operation during ram lowering (50 kN type, 2.7 times faster than ours). Compact, high-speed tabletop press with hydraulic pump, motor, and hydraulic circuit integrated in the column, high/low speed switching operation during lowering, and a counter as standard equipment. After installation, the press can be operated simply by connecting the power supply, and high productivity can be achieved with options for each application.
Specification table
This table can be scrolled horizontally.
| Model | KL type series (5KL, 10KL) | ||
|---|---|---|---|
| AP-5KL | AP-10KL | ||
| Used load range (kN) | 20～50 | 40～100 | |
| *1 (reference),based on ton | 2～5 | 4～10 | |
| Ram stroke (mm) | 150 | 200 | |
| Ram stroke extension | Option +50 & +100mm | ||
| Ram down speed (mm/s) |
When approaching(high speed) | 350 | 180 |
| When pressurizing (low speed) | 36 | 19 | |
| Ram up speed (mm/s) |
250 | 200 | |
| Operation area | Open-height (mm) |
250 | 350 |
| Depth (mm) | 180 | 225 | |
| Body size | Height (mm) | 986 | 1,325 |
| Width (mm) | 485 | 485 | |
| Depth(mm) | 917 | 915 | |
| Motor specification | 3-phase AC200V 4P 1.5KW | ||
| Operation oil / quantity | Daphni Hydraulic 46/9L | ||
| Overall Weight (kg) | 270 | 500 | |
- *1 (Reference) Guideline for old unit is not a conversion value.
- ・ It is possible that the specifications may be changed in order to make improvement(s) without notice.

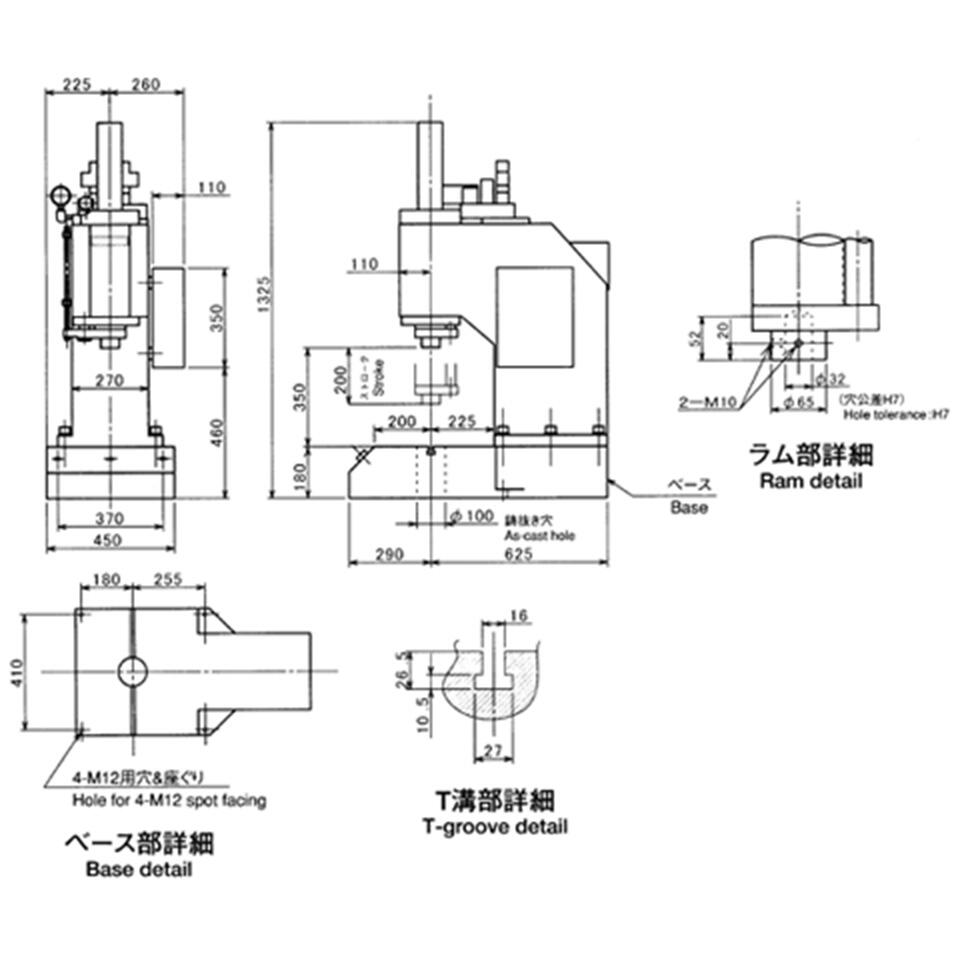

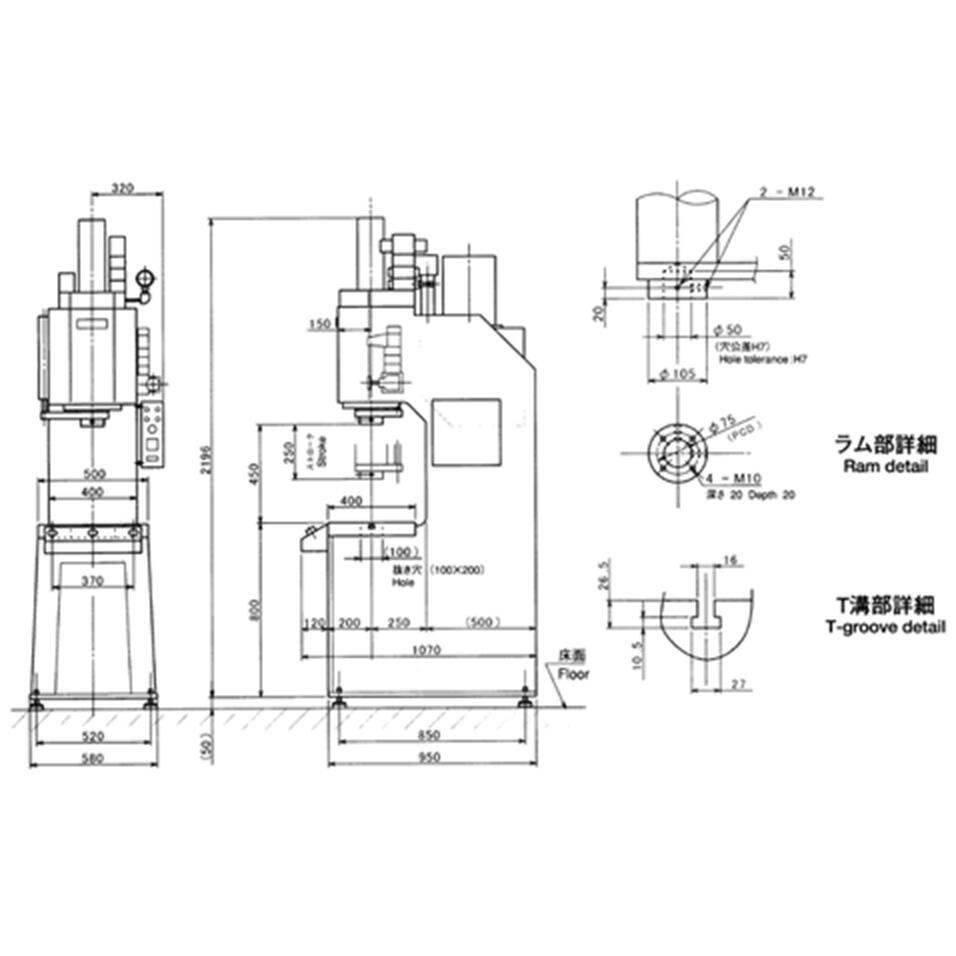

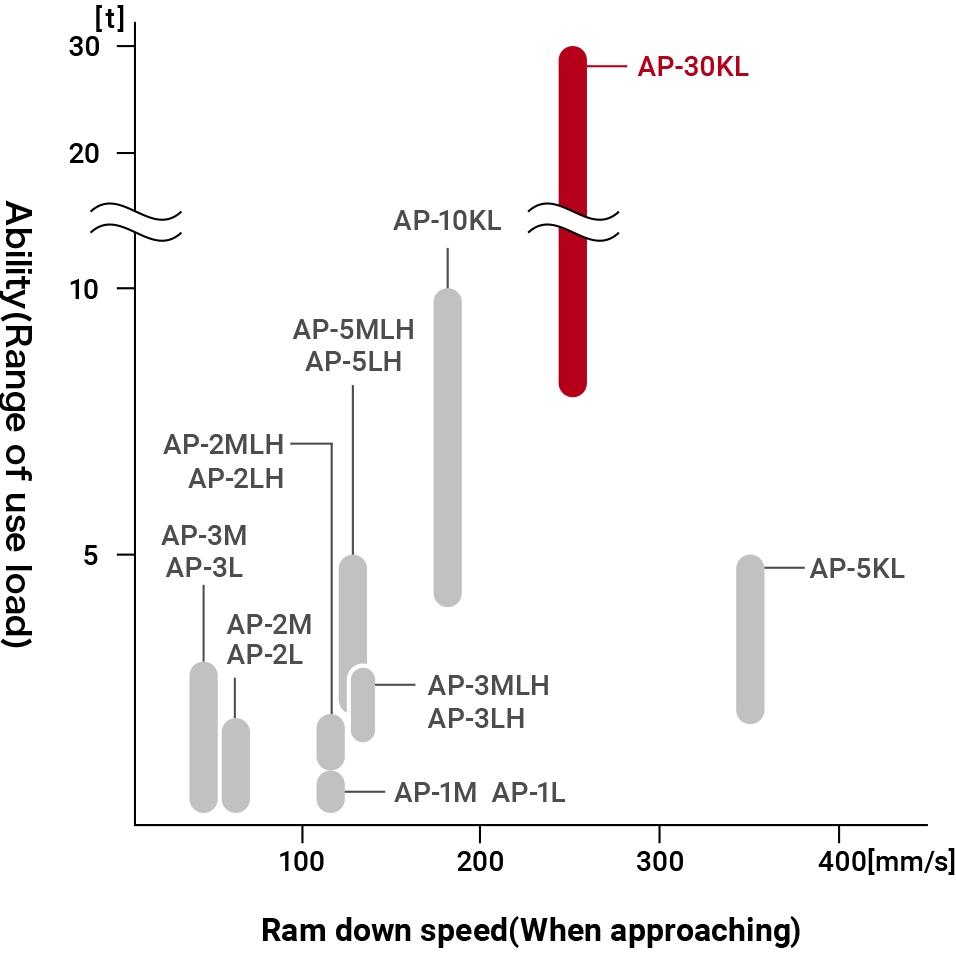

30KL type
Compact designed freestanding integrated hydraulic press that follows the basic structure of the 5KL/10KL models. A piston hydraulic pump unit is mounted inside the column to achieve a compact size. After installation, the press can be operated simply by connecting the power supply, and high productivity can be achieved with options for each application.
Specification table
This table can be scrolled horizontally.
| Model | KL type series (30KL) | |
|---|---|---|
| AP-30KL | ||
| Used load range (kN) | 80～300 | |
| *1 (reference),based on ton | 8～30 | |
| Ram stroke (mm) | 250 | |
| Ram down speed (mm/s) | When approaching(high speed) | 250 |
| When pressurizing (low speed) | 22 | |
| Ram up speed (mm/s) | 200 | |
| Operation area | Open-height (mm) |
450 |
| Depth (mm) | 250 | |
| Body size | Height (mm) | 2,196 |
| Width (mm) | 580 | |
| Depth(mm) | 1,070 | |
| Motor specification | 3-phase AC200V 4P 3.7KW | |
| Operation oil / quantity | Daphni Hydraulic 46/35L | |
| Overall Weight (kg) | 1,200 | |
- *1 (Reference) Guideline for old unit is not a conversion value.
- ・ It is possible that the specifications may be changed in order to make improvement(s) without notice.
Hydraulic Press unit
Press unit that can be used for specialized equipment, etc., taking advantage of the features of the L-type and 5/10KL-type hydraulic presses.
Control circuits and base parts are omitted from each press to ensure design flexibility.
- Space saving
- Press unit simensions : Wide (250～550mm) × Height (851～ 1125mm）
- Pressurizing force:1t～10t
- Wide variation of 10・20・30・50 and 100kN（1・2・3・5 and）
- Weight
- 190-400kg

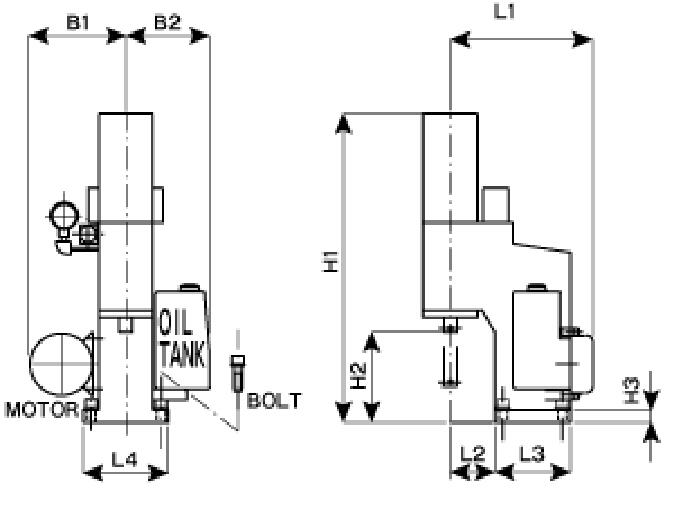

Press unit specifications list[1]
This table can be scrolled horizontally.
| Type [*1] | M type (Production End) | L type | KL type |
|---|---|---|---|
|
AP-□-BE/L [M、MH、MLH] |
AP-□-BE/L [L、LH] |
AP-5KL-BE/L AP-10KL-BE/L |
|
| Weight (kg) | M,MH type 140 MLH type 190 |
260 | 250 400 |
| AP press basic model | AP-1M,2M,3M AP-2MH AP-3MLH,5MLH |
AP-1L,2L,3L AP-2LH,3LH,5LH |
AP-5KL AP-10KL |
| Press unit Specifications / Outline | [*2]
|
|
|
- *1 Model is displayed by adding "-BE/l" on the basic model. Model is displayed by adding " hyphen BE slash l" on the basic model.
- *2 This displays a delivery figure. In set up, remove the motor and oil tank in accordance with the "Set up manual" attached to the machine. then, complete set up.
Special specifications example
-
(Motor and oil tank are mounted on upper position of the machine.)

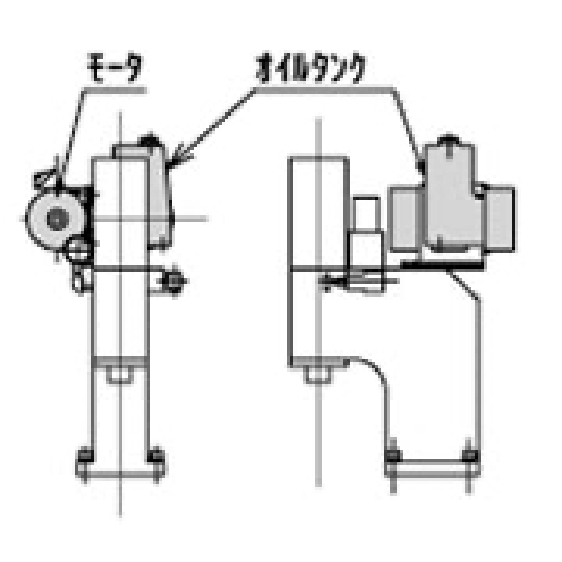

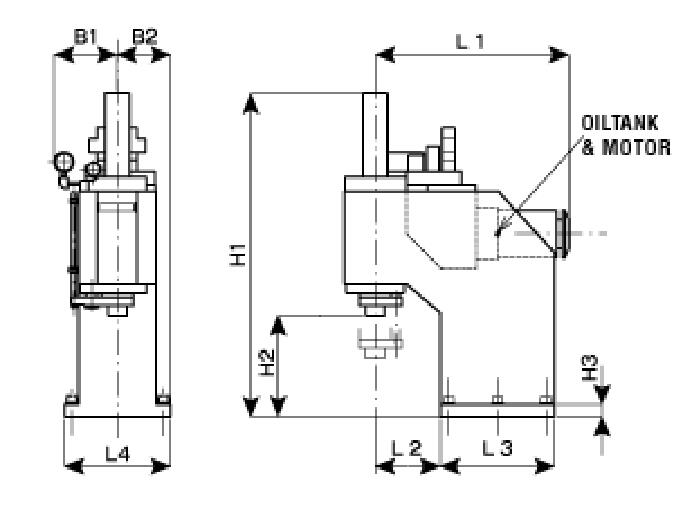

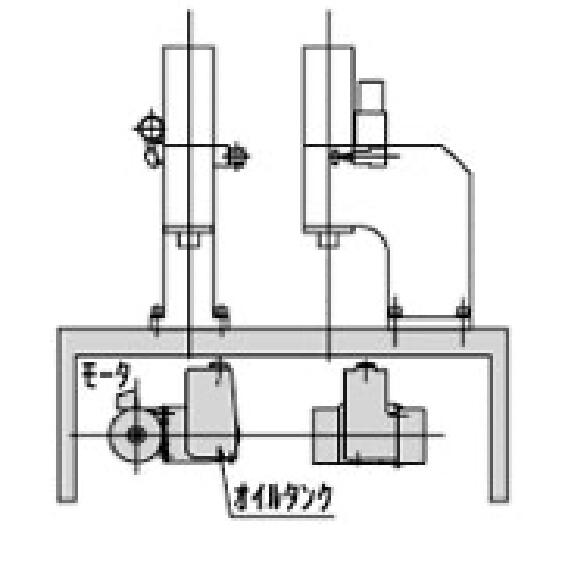

M,L type special specifications (I)
-
(Motor and oil tank are mounted on upper position of the machine.)
M,L type special specifications (II)
Press unit specifications list[2]
This table can be scrolled horizontally.
| Type [*1] | M type (Production End) |
L type | KL type | ||
|---|---|---|---|---|---|
| AP-□-BE/L [M、MH、MLH] |
AP-□-BE/L [L、LH] |
AP-5KL-BE/L | AP-10KL-BE/L | ||
| Width B |
B1(mm) | 270 | (170) | ||
| B2(mm) | 235 | 180 | 185 | ||
| Height H |
H1(mm) | 852 | 851 | 1,125 | |
| H2(mm) | 250 | 250 | 350 | ||
| H3(mm) | 35 | 35 | 40 | ||
| Installed plane L |
L1(mm) | 415 | 510 | 647 | 625 |
| L2(mm) | 125 | 180 | 180 | 225 | |
| L3(mm) | 210 | 250 | 300 | 400 | |
| L4(mm) | 234 | 234 | 360 | 370 | |
- *1 Model is displayed by adding "-BE/l" on the basic model. Model is displayed by adding " hyphen BE slash l" on the basic model.
- *2 This displays a delivery figure. In set up, remove the motor and oil tank in accordance with the "Set up manual" attached to the machine. then, complete set up.

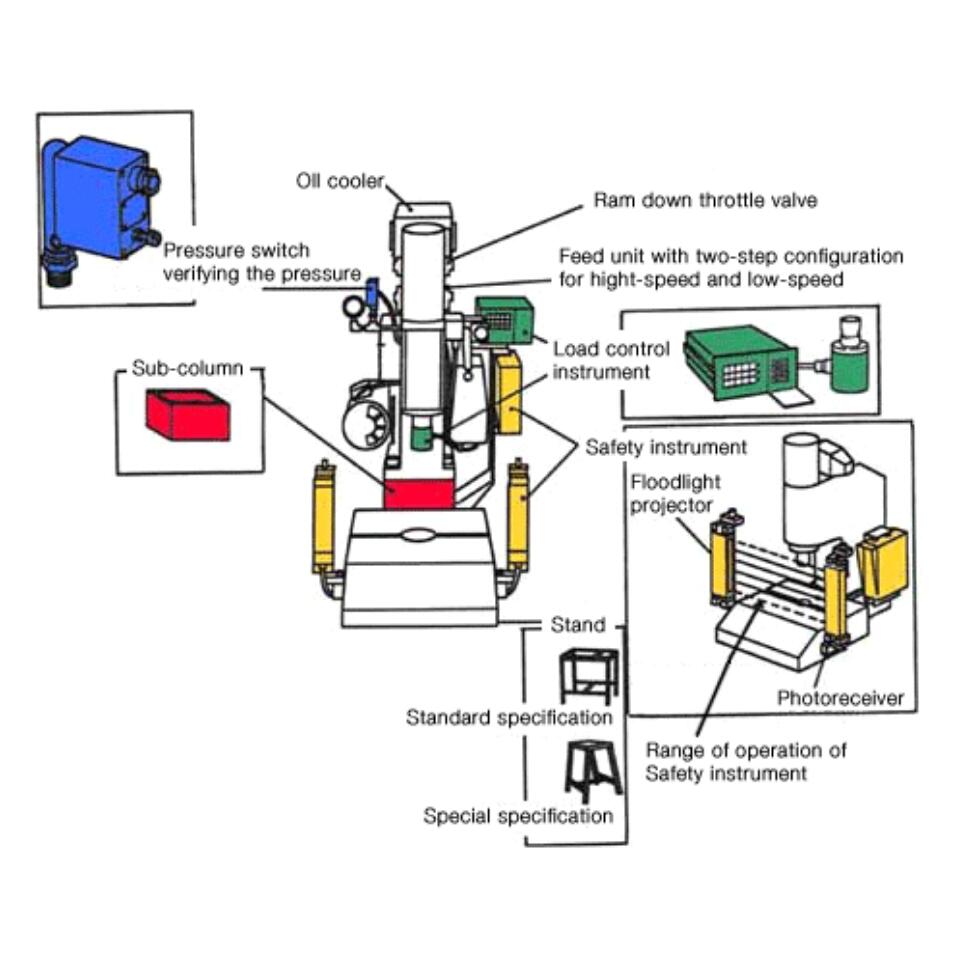

Hydraulic Option
Optional equipment that can be mounted on Atsugi hydraulic tabletop presses (including some that are not covered by the specifications).
Instruments for controlling load during press operation
- Load control instrument
-
Digital display of force used in work.
Composed of detection part (load cell) and display device (amp), and provides a digital display of the load on the press fit or caulking at each stroke.
(In manufacturing press fit and caulking, process control is optimal. This allows high quality process planning.) - Pressure switch for verifying the pressure
- Device for verifying that the press is attaining the fixed, set pressure.
Safety instrument
Ensures safety during press operations.
Oil cooler
Device for cooling hydraulic oil.
(Do not use if oil temperature exceeds 65 degrees).
Ram down throttle regulation
- Ram down throttle valve
- The throttle valve for controlling the ram downing speed.
- Feed unit with two-step configuration for high-speed and low-speed
-
Ram down-throttle unit is divided into two steps.
- [High-speed] Maximum ram downing speed.
- [Low-speed] The ram downing speed prior to compression; used together with the above down throttle valve.
Sub-column
Press's open height can be enlarged.
(Please choose a value from 50,100,150....50mm through....500mm. 400mm is the max for 10 ton unit)
(Please use caution: if additional height is added, the overall height will also enlarge.)
Stand
Stand for press installation.
Please inquire as standard and specialized specifications are available.
Sitting operation : 650mm
Standing operation : 780mm
Coating color (color specification)
Standard color for standard equipment is hammertone blue-grey (if you wish to specify a color, please specify a color from the standard color examples given by the Japan Paint Manufacturers Association. Please inquire, as extra time may be needed for color-matching.)
